| Rated current (Iu) | Filter products by 6 A |
|---|---|
| Rated voltage (Ue) | Filter products by 400 / 440 V |
| Number of poles | Filter products by 2P |
| Max Break Capacity | Filter products by 10 kA |
| Degree of protection (IP) | Filter products by IP20 / IP40 |
| Product Series | Filter products by S200MUC |
ABBMCB – S200M UC 10kA DCMiniature Circuit Breakers (MCB's)Power Distribution & Protection

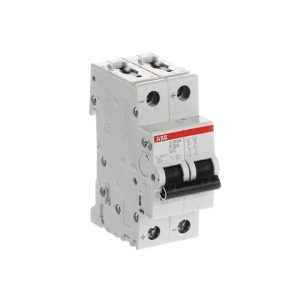

2CDS272061R0377 – S202M-K6UC | ABB
Order code
List R2 338.04 Your price R1 285.92
Per unit · volume pricing available on request
excl. VAT R1 478.81 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
S202M-K6UC — ABB order code 2CDS272061R0377. Rated current 6 A; 2P; breaking capacity 10 kA; rated voltage 400 / 440 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)
Select a variant in this series
Rated voltage400 / 440 V4 options
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
2CDS272061R0377 — S202M-K6UC from the ABB 2P 6A K – Curve 10kA range. Listed under MCB – S200M UC 10kA DC on the ABB catalogue at RMS-ABB.Africa.
About 2CDS272061R0377
The miniature circuit breaker S 200 M UC extends the established ABB System pro M compact® product range with an MCB for DC and AC applications. The S 200 M UC impresses with its performance range and the accordingly large amount of approvals. Its high inbuilt short circuit breaking capacity across the entire model line, its flexible AC and DC application and its approval and compliance in accordance with all major international and local standards make it truly unique. All current System pro M compact® accessories can be combined easily with the new model line. Whether warehousing or project engineering, planning, installing or maintaining your equipment, the S 200 M UC is a simple and flexible solution.
2CDS272061R0377 key specifications
Key specifications: rated current 6 A; 2P; breaking capacity 10 kA; rated voltage 400 / 440 V; 50 / 60 Hz / DC; IP20 / IP40; ambient −25 … +55 / −40 … +70 °C; to CSA 22.2 No. 235|IEC/EN 60947-2|UL 1077.
Ordering information for 2CDS272061R0377
- Order code:
2CDS272061R0377 - Manufacturer: ABB
- Range: 2P 6A K – Curve 10kA
- GTIN / EAN: 4013614433184
- Supplied: each
- Datasheet: manufacturer datasheet for 2CDS272061R0377
2CDS272061R0377 — frequently asked questions
What is the rated current of 2CDS272061R0377?
2CDS272061R0377 is rated 6 A.
How many poles does 2CDS272061R0377 have?
2CDS272061R0377 is a 2P device.
What is the breaking capacity of 2CDS272061R0377?
The catalogue states 10 kA for 2CDS272061R0377. Check the datasheet for the value at your system voltage.
Where is the datasheet for 2CDS272061R0377?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.
Is 2CDS272061R0377 a genuine ABB product?
Yes. 2CDS272061R0377 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | 2CDS272061R0377 |
|---|---|
| Product Name | Filter products by S202M-K6UC |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product Series | Filter products by S200MUC |
| GTIN / EAN | 4013614433184 |
| Range | Filter products by 2P 6A K – Curve 10kA |
Electrical ratings
| Number of poles | Filter products by 2P |
|---|---|
| Rated current (Iu) | Filter products by 6 A |
| Rated voltage (Ue) | Filter products by 400 / 440 V |
| Rated Frequency | Filter products by 50 / 60 Hz / DC |
| Max Break Capacity | Filter products by 10 kA |
| Pollution Degree | Filter products by 3 |
Power & coil
| Power Loss | Filter products by 1.77 W, Filter products by 3.54 W |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 / IP40 |
|---|---|
| Ambient air temperature | Filter products by −25 … +55 / −40 … +70 °C |
Standards & certification
| Conformity to standards | Filter products by CSA 22.2 No. 235, Filter products by IEC/EN 60947-2, Filter products by UL 1077 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| RoHS declaration | Download RoHS declaration |
| Declaration of conformity | Download declaration of conformity |
| ABB product page | View on the ABB site |
| Deep Link | Printable product summary |
| 360° view | Open 360° view |
Higher-rated in this range
6 itemsSame series, a larger rating — where the duty is heavier than this part covers.
Higher-rated in this range
6 items
2CDS272061R0105S202M-B10UCList R1 626.47 Your price R894.56View product
2CDS274061R0427S204M-K10UCList R4 472.82 Your price R2 460.05View product
2CDS273061R0427S203M-K10UCList R3 110.62 Your price R1 710.84View product
2CDS272061R0427S202M-K10UCList R2 053.43 Your price R1 129.39View product
2CDS271061R0427S201M-K10UCList R894.58 Your price R492.02View product
2CDS271061R0105S201M-B10UCList R711.57 Your price R391.36View product
More in the S200MUC range
8 itemsSame series, same mounting and the same documentation set.
More in the S200MUC range
8 items- 2CDS273061R0607S203M-K63UCList R5 651.95 Your price R3 108.57View product
2CDS273061R0577S203M-K50UCList R4 737.10 Your price R2 605.41View product
2CDS272061R0205S202M-B20UCList R1 626.47 Your price R894.56View product
2CDS272061R0165S202M-B16UCList R1 626.47 Your price R894.56View product
2CDS271061R0557S201M-K40UCList R1 179.19 Your price R648.55View product
2CDS271061R0607S201M-K63UCList R1 626.47 Your price R894.56View product- 2CDS274061R0557S204M-K40UCList R5 895.95 Your price R3 242.77View product
2CDS274061R0577S204M-K50UCList R6 810.80 Your price R3 745.94View product
Similar items
7 items
Similar items
7 items
2CDS272061R0517S202M-K25UCList R2 338.04 Your price R1 285.92View product
2CDS272061R0277S202M-K2UCList R2 338.04 Your price R1 285.92View product
2CDS272061R0217S202M-K1UCList R2 338.04 Your price R1 285.92View product
2CDS272061R0537S202M-K32UCList R2 315.56 Your price R1 273.56View product
2CDS272061R0467S202M-K16UCList R2 053.43 Your price R1 129.39View product
2CDS272061R0487S202M-K20UCList R2 053.43 Your price R1 129.39View product
2CDS272061R0557S202M-K40UCList R2 704.00 Your price R1 487.20View product
More in MCB – S200M UC 10kA DC
8 items
More in MCB – S200M UC 10kA DC
8 items- 2CDS274061R0467S204M-K16UCList R4 472.82 Your price R2 460.05View product
- 2CDS274061R0487S204M-K20UCList R4 472.82 Your price R2 460.05View product
- 2CDS274061R0517S204M-K25UCList R5 082.71 Your price R2 795.49View product
- 2CDS274061R0537S204M-K32UCList R5 082.71 Your price R2 795.49View product
- 2CDS274061R0607S204M-K63UCList R8 132.33 Your price R4 472.78View product
- 2CDS274061R0377S204M-K6UCList R5 082.71 Your price R2 795.49View product
- 2CDS274061R0277S204M-K2UCList R5 082.71 Your price R2 795.49View product
- 2CDS274061R0217S204M-K1UCList R5 082.71 Your price R2 795.49View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is 2CDS272061R0377?
2CDS272061R0377 is the order code for S202M-K6UC. It belongs to our MCB – S200M UC 10kA DC range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.
What is the rated current of 2CDS272061R0377?
ABB rates S202M-K6UC at 6 A. It is a 2P-pole device.
What is the breaking capacity of 2CDS272061R0377?
ABB specifies a breaking capacity of 10 kA. A breaking capacity holds at a stated voltage; check the datasheet for the value at your system voltage.
What voltage is 2CDS272061R0377 rated for?
ABB rates it for 400, 440.
What is the IP rating of 2CDS272061R0377?
ABB gives it a degree of protection of IP20 / IP40.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
