ABBMCB – S200M UC 10kA DCMiniature Circuit Breakers (MCB's)Power Distribution & Protection
2CDS272061R0105 – S202M-B10UC | ABB
Order code
List R1 626.47 Your price R894.56
Per unit · volume pricing available on request
excl. VAT R1 028.74 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

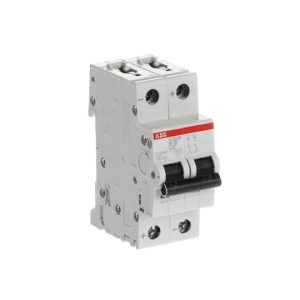

S202M-B10UC — ABB order code 2CDS272061R0105. Rated current 10 A; 2P; breaking capacity 10 kA; rated voltage 12 / 440 / 500 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)
Select a variant in this series
Rated voltage12 / 440 / 500 V4 options
- 12 / 250 / 253 V
- 12 / 440 / 500 V
- 220 / 230 / 253 V
- 400 / 440 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
2CDS272061R0105 — S202M-B10UC from the ABB 2P 10A B – Curve 10kA range. Listed under MCB – S200M UC 10kA DC on the ABB catalogue at RMS-ABB.Africa.
About 2CDS272061R0105
The miniature circuit breaker S 200 M UC extends the established ABB System pro M compact® product range with an MCB for DC and AC applications. The S 200 M UC impresses with its performance range and the accordingly large amount of approvals. Its high inbuilt short circuit breaking capacity across the entire model line, its flexible AC and DC application and its approval and compliance in accordance with all major international and local standards make it truly unique. All current System pro M compact® accessories can be combined easily with the new model line. Whether warehousing or project engineering, planning, installing or maintaining your equipment, the S 200 M UC is a simple and flexible solution.
2CDS272061R0105 key specifications
Key specifications: rated current 10 A; 2P; breaking capacity 10 kA; rated voltage 12 / 440 / 500 V; rated operational voltage 400 / 440 V; 50 / 60 Hz / DC; IP20 / IP40; ambient −25 … +55 / −40 … +70 °C.
Ordering information for 2CDS272061R0105
- Order code:
2CDS272061R0105 - Manufacturer: ABB
- Range: 2P 10A B – Curve 10kA
- GTIN / EAN: 4013614432828
- Supplied: each
- Datasheet: manufacturer datasheet for 2CDS272061R0105
2CDS272061R0105 — frequently asked questions
What is the rated current of 2CDS272061R0105?
2CDS272061R0105 is rated 10 A.
How many poles does 2CDS272061R0105 have?
2CDS272061R0105 is a 2P device.
What is the breaking capacity of 2CDS272061R0105?
The catalogue states 10 kA for 2CDS272061R0105. Check the datasheet for the value at your system voltage.
Where is the datasheet for 2CDS272061R0105?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.
Is 2CDS272061R0105 a genuine ABB product?
Yes. 2CDS272061R0105 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | 2CDS272061R0105 |
|---|---|
| Product Name | Filter products by S202M-B10UC |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product Series | Filter products by S200MUC |
| GTIN / EAN | 4013614432828 |
| Range | Filter products by 2P 10A B – Curve 10kA |
Electrical ratings
| Number of poles | Filter products by 2P |
|---|---|
| Rated current (Iu) | Filter products by 10 A |
| Rated voltage (Ue) | Filter products by 12 / 440 / 500 V |
| Rated operational voltage | Filter products by 400 / 440 V |
| Rated Frequency | Filter products by 50 / 60 Hz / DC |
| Max Break Capacity | Filter products by 10 kA |
| Pollution Degree | Filter products by 3 |
Power & coil
| Power Loss | Filter products by 2.03 W, Filter products by 4.06 W |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 / IP40 |
|---|---|
| Ambient air temperature | Filter products by −25 … +55 / −40 … +70 °C |
Standards & certification
| Conformity to standards | Filter products by IEC/EN 60898-2, Filter products by IEC/EN 60947-2 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| RoHS declaration | Download RoHS declaration |
| Declaration of conformity | Download declaration of conformity |
| ABB product page | View on the ABB site |
| Deep Link | Printable product summary |
| 360° view | Open 360° view |
