Save 45%

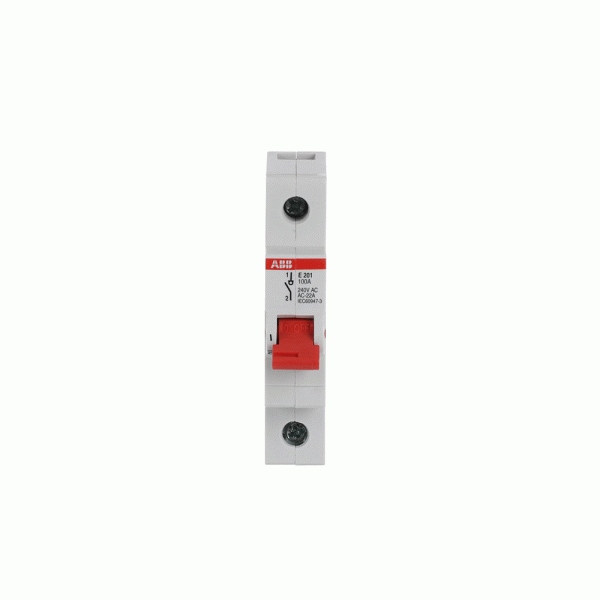

E201/100
Key specifications
Rated current (Iu)Filter products by 100 A
Rated voltage (Ue)Filter products by 230 / 12 V
Number of polesFilter products by 1P
Max Break CapacityFilter products by 25 kA
Degree of protection (IP)Filter products by IP10
Product SeriesFilter products by E200

ABBModular Isolators Modular Contactors Modular ChangeoversPower Distribution & Protection

2CDE281001R0100 – E201/100 | ABB

Order code

List R423.38 Your price R232.86

Per unit · volume pricing available on request

excl. VAT R267.79 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

E201/100 — ABB order code 2CDE281001R0100. Rated current 100 A; 1P; breaking capacity 25 kA; rated voltage 230 / 12 V.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Printable product summary (opens in a new tab)

Select a variant in this series

Rating100 A3 options
Poles1P4 options
Breaking capacity25 kA2 options
Rated voltage230 / 12 V2 options

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CDE281001R0100 Categories: , Tags: ,

Overview

2CDE281001R0100 — E201/100 from the ABB 1P 100A range. Listed under Modular Isolators Modular Contactors Modular Changeovers on the ABB catalogue at RMS-ABB.Africa.

About 2CDE281001R0100

These devices are suitable for commanding loads and they are realized according EN 60947-3 and EN 60669-1 respectively. Fast removal without dismantling of the busbar. Captive screws with recessed/slotted head. Pozidrive size 2. Add-on of up to 3 auxiliary contact S2C-H6R possible Integrated lay-on edge for labeling system ILS. Locking device as accessories for unauthorized ON/OFF. Approval: VDE, CCC, KEMA.

2CDE281001R0100 key specifications

Key specifications: rated current 100 A; 1P; breaking capacity 25 kA; rated voltage 230 / 12 V; rated operational voltage 230 / 400 V; 50 / 60 Hz; IP10; ambient −25 … +55 °C.

Ordering information for 2CDE281001R0100

2CDE281001R0100 — frequently asked questions

What is the rated current of 2CDE281001R0100?

2CDE281001R0100 is rated 100 A.

How many poles does 2CDE281001R0100 have?

2CDE281001R0100 is a 1P device.

What is the breaking capacity of 2CDE281001R0100?

The catalogue states 25 kA for 2CDE281001R0100. Check the datasheet for the value at your system voltage.

Where is the datasheet for 2CDE281001R0100?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 2CDE281001R0100 a genuine ABB product?

Yes. 2CDE281001R0100 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code2CDE281001R0100
Product NameFilter products by E201/100R
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by E200
GTIN / EAN4016779645768
RangeFilter products by 1P 100A

Electrical ratings

Number of polesFilter products by 1P
Rated current (Iu)Filter products by 100 A
Rated voltage (Ue)Filter products by 230 / 12 V
Rated operational voltageFilter products by 230 / 400 V
Operating VoltageFilter products by 230 / 400
Rated FrequencyFilter products by 50 / 60 Hz
Max Break CapacityFilter products by 25 kA
Pollution DegreeFilter products by 3

Power & coil

Power LossFilter products by 3.95 W

Environment & protection

Degree of protection (IP)Filter products by IP10
Ambient air temperatureFilter products by −25 … +55 °C

Standards & certification

Conformity to standardsFilter products by IEC/EN 60947-3

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
ABB product pageView on the ABB site
Deep LinkPrintable product summary

Higher-rated in this range

4 items

Same series, a larger rating — where the duty is heavier than this part covers.

More in the E200 range

6 items

Same series, same mounting and the same documentation set.

Similar items

7 items

More in Modular Isolators Modular Contactors Modular Changeovers

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 2CDE281001R0100?

2CDE281001R0100 is the order code for E201/100. It belongs to our Modular Isolators Modular Contactors Modular Changeovers range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

What is the rated current of 2CDE281001R0100?

ABB rates E201/100 at 100 A. It is a 1P-pole device.

What voltage is 2CDE281001R0100 rated for?

ABB rates it for 12 V Minimum, 230.

What is the IP rating of 2CDE281001R0100?

ABB gives it a degree of protection of IP10.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
