Save 45%
S802PV-M100-H
Key specifications
Rated current (Iu)Filter products by 100 A
Rated voltage (Ue)Filter products by 1000 V
Number of polesFilter products by 2P
Max Break CapacityFilter products by 1.5 kA
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by S800PV-M-H

ABBModular Isolators Modular Contactors Modular ChangeoversPower Distribution & Protection

2CCP247212R0001 – S802PV-M100-H | ABB

Order code

List R6 125.74 Your price R3 369.16

Per unit · volume pricing available on request

excl. VAT R3 874.53 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

S802PV-M100-H — ABB order code 2CCP247212R0001. Rated current 100 A; 2P; breaking capacity 1.5 kA; rated voltage 1000 V.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Printable product summary (opens in a new tab)

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CCP247212R0001 Categories: , Tags: ,

Overview

2CCP247212R0001 — S802PV-M100-H from the ABB 2P 100A 1000V DC range. Listed under Modular Isolators Modular Contactors Modular Changeovers on the ABB catalogue at RMS-ABB.Africa.

About 2CCP247212R0001

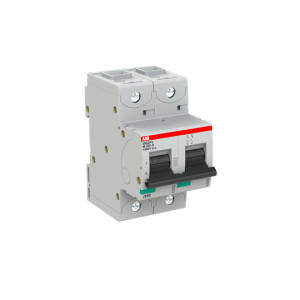

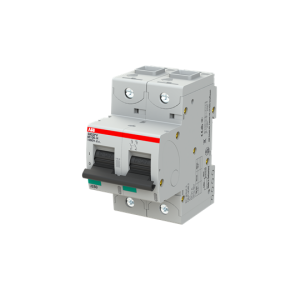

The S802PV-M100-H is a 2-pole polarized disconnector for photovoltaics. It can be used for currents up to 100A and has a rated operational voltage of 1000V DC by only 54mm width. The rated short-term withstand current Icw is 1.5kA. The S802PV-M100-H complies with IEC/EN 60947-3. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-M100-H more comfortable.

2CCP247212R0001 key specifications

Key specifications: rated current 100 A; 2P; breaking capacity 1.5 kA; rated voltage 1000 V; IP20; ambient −40 … +70 °C; to IEC/EN 60947-3.

Ordering information for 2CCP247212R0001

2CCP247212R0001 — frequently asked questions

What is the rated current of 2CCP247212R0001?

2CCP247212R0001 is rated 100 A.

How many poles does 2CCP247212R0001 have?

2CCP247212R0001 is a 2P device.

What is the breaking capacity of 2CCP247212R0001?

The catalogue states 1.5 kA for 2CCP247212R0001. Check the datasheet for the value at your system voltage.

Where is the datasheet for 2CCP247212R0001?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 2CCP247212R0001 a genuine ABB product?

Yes. 2CCP247212R0001 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code2CCP247212R0001
Product NameFilter products by S802PV-M100-H
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by S800PV-M-H
GTIN / EAN7612271419301
RangeFilter products by 2P 100A 1000V DC

Electrical ratings

Number of polesFilter products by 2P
Rated current (Iu)Filter products by 100 A
Rated voltage (Ue)Filter products by 1000 V
Max Break CapacityFilter products by 1.5 kA
Pollution DegreeFilter products by 2

Power & coil

Power LossFilter products by 0.6 W, Filter products by 1.2 W

Environment & protection

Degree of protection (IP)Filter products by IP20
Ambient air temperatureFilter products by −40 … +70 °C

Standards & certification

Conformity to standardsFilter products by IEC/EN 60947-3

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
ABB product pageView on the ABB site
Deep LinkPrintable product summary
