Save 45% Genuine ABB

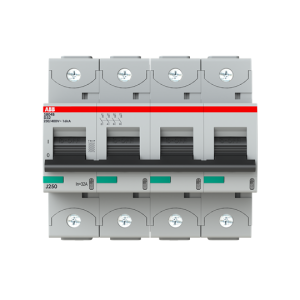

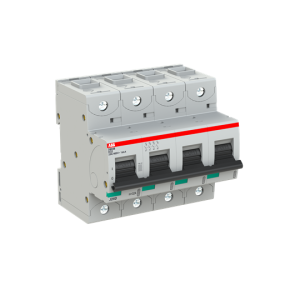

2CCS814001R0321 — 2CCS814001R0321 - S804B-D32 ABB High Perfomance MCB - S800B 16kA

Key specifications

Rated current (Iu)
32 A
Rated voltage (Ue)
400 V
Number of poles
4P
Max Break Capacity
16kA
Rated Frequency
50 / 60
Degree of protection (IP)
IP20
ABB S800B · Authorised distributor
High Perfomance MCB – S800B 16kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

2CCS814001R0321 – S804B-D32 ABB High Perfomance MCB – S800B 16kA

Buy 2CCS814001R0321 – S804B-D32 ABB High Perfomance MCB – S800B 16kA from ABB. Genuine ABB component for automation, motor control and electrical installations. S804B-D32
Order code 2CCS814001R0321

Your price

Original price was: R4805.21.Current price is: R2642.87.
Save 45%

Excluding VAT · per unit · volume pricing available on request

Request a quote
Product datasheet View on ABB.com
Genuine ABB product — supplied through authorised channels.
Fast delivery across South Africa & Africa (lead time confirmed on order).
Off-site stock — availability is confirmed after quote request or order placement.

Overview

4P 32A D – Curve 16kA The S804B-D32 is a 4-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 32 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804B-D32 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804B-D32 more comfortable. Due to the fast arc extinction of S804B-D32 your application will be secured.

2CCS814001R0321 – S804B-D32 ABB High Perfomance MCB – S800B 16kA is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution applications.

ABB products are widely used across commercial and industrial installations where reliability, safety, and long operational life are required.

Applications

  • Industrial automation
  • Motor control systems
  • Power distribution infrastructure
  • Commercial electrical installations

Browse Related Categories

High Perfomance MCB – S800B 16kA | Miniature Circuit Breakers (MCB's) | Power Distribution & Protection

Technical specifications

Data supplied by ABB. Please confirm against the official datasheet before ordering.

Ordering & identification

Order code
2CCS814001R0321
Product Name
S804B-D32
Product Series
S800B
Brand
ABB  ·  ABB Group  ·  ABB Limited
International GTIN
7612271415976.0

Electrical ratings & operation

Rated current (Iu)
32 A
Rated voltage (Ue)
400 V
Rated Frequency
50 / 60
Rated operational voltage
400 V
Operating Voltage
400 V
Max Break Capacity
16kA
Number of poles
4P
Degree of protection (IP)
IP20
Pollution Degree
3.0

Power & coil characteristics

Power Loss
12.8 W  ·  3.2 W

Environment

Ambient air temperature
'-40 … 70

Documents & media

Datasheet
Download datasheet
RoHS declaration
Download RoHS declaration
Declaration of conformity
Download declaration of conformity
Instructions for Use
Download instructions
ABB product page
View on ABB.com
Deep Link
Open deep link

Documents & downloads

Official ABB documentation for this order code.

Technical datasheetPDF · ABB Library RoHS declarationPDF · Compliance Declaration of conformityPDF · Compliance Instructions for usePDF · Manual View on ABB.comManufacturer page

Ordering & delivery

How to order

Contact us for bulk pricing, lead times and ordering codes. Add the item to your cart to order online, or request a quotation if you need a formal quote document, project pricing or a written lead time.

Stock & lead time

Some items are held off-site rather than in our Johannesburg warehouse. Where that is the case, availability is confirmed once a quote is requested or an order is placed, and the lead time is confirmed in writing on your quotation.

Delivery

Nationwide delivery across South Africa, export delivery to the rest of Africa on request, and collection available from our Johannesburg branch.

Accessories & add-ons

Compatible accessories from the same ABB range.

1SCA022790R3910 - OZXA40 ABB Switch Accessories Buy 1SCA022790R3910 - OZXA40 ABB Switch Accessories from ABB. Genuine ABB component for automation, motor control and electrical installations. OZXA40 Load Break / Change Over Switches 1SCA022790R3910 – OZXA40 ABB Switch Accessories 1SCA022790R3910 Original price was: R1262.41.Current price is: R694.32. 1SCA022790R4040 - OZXA41 ABB Switch Accessories Buy 1SCA022790R4040 - OZXA41 ABB Switch Accessories from ABB. Genuine ABB component for automation, motor control and electrical installations. OZXA41 Load Break / Change Over Switches 1SCA022790R4040 – OZXA41 ABB Switch Accessories 1SCA022790R4040 Original price was: R2005.45.Current price is: R1103.00. 1SCA022382R9850 - OHB65J6E00S ABB Switch Accessories Buy 1SCA022382R9850 - OHB65J6E00S ABB Switch Accessories from ABB. Genuine ABB component for automation, motor control and electrical installations. OHB65J6E00S Load Break / Change Over Switches 1SCA022382R9850 – OHB65J6E00S ABB Switch Accessories 1SCA022382R9850 Original price was: R645.14.Current price is: R354.83. 1SCA022639R0720 - OZXT3 ABB Switch Accessories Buy 1SCA022639R0720 - OZXT3 ABB Switch Accessories from ABB. Genuine ABB component for automation, motor control and electrical installations. OZXT3 Load Break / Change Over Switches 1SCA022639R0720 – OZXT3 ABB Switch Accessories 1SCA022639R0720 Original price was: R1351.77.Current price is: R743.47.

Similar items

Comparable order codes you may want instead.

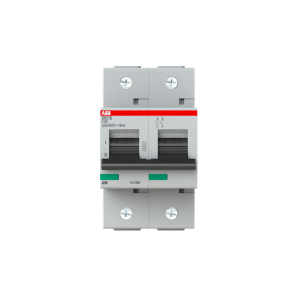

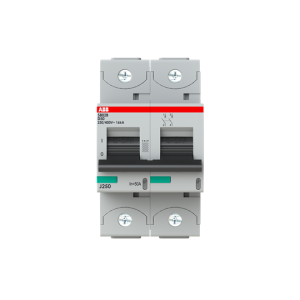

Buy 2CCS812001R0844 - S802B-C125 High Perfomance MCB – S800B 16kA 2CCS812001R0844 – S802B-C125 ABB High Perfomance MCB – S800B 16kA 2CCS812001R0844 R2553.69 Buy 2CCS812001R0401 - S802B-D40 High Perfomance MCB – S800B 16kA 2CCS812001R0401 – S802B-D40 ABB High Perfomance MCB – S800B 16kA 2CCS812001R0401 R2493.51 Buy 2CCS812001R0501 - S802B-D50 High Perfomance MCB – S800B 16kA 2CCS812001R0501 – S802B-D50 ABB High Perfomance MCB – S800B 16kA 2CCS812001R0501 R2493.51 Buy 2CCS812001R0631 - S802B-D63 High Perfomance MCB – S800B 16kA 2CCS812001R0631 – S802B-D63 ABB High Perfomance MCB – S800B 16kA 2CCS812001R0631 R2493.51

More in High Perfomance MCB – S800B 16kA

Other order codes in the same family.

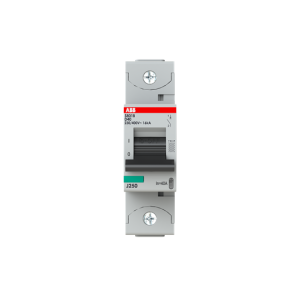

Buy 2CCS811001R0321 - S801B-D32 High Perfomance MCB – S800B 16kA 2CCS811001R0321 – S801B-D32 ABB High Perfomance MCB – S800B 16kA 2CCS811001R0321 R1198.34 Buy 2CCS811001R0324 - S801B-C32 High Perfomance MCB – S800B 16kA 2CCS811001R0324 – S801B-C32 ABB High Perfomance MCB – S800B 16kA 2CCS811001R0324 R970.41 Buy 2CCS811001R0401 - S801B-D40 High Perfomance MCB – S800B 16kA 2CCS811001R0401 – S801B-D40 ABB High Perfomance MCB – S800B 16kA 2CCS811001R0401 R952.78 Buy 2CCS811001R0404 - S801B-C40 High Perfomance MCB – S800B 16kA 2CCS811001R0404 – S801B-C40 ABB High Perfomance MCB – S800B 16kA 2CCS811001R0404 R961.89
