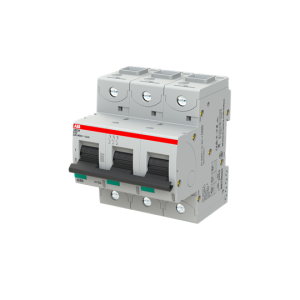

S803B-D32
Key specifications
Rated current (Iu)Filter products by 32 A
Rated voltage (Ue)Filter products by 400 V
Number of polesFilter products by 3P
Max Break CapacityFilter products by 16 kA
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by S800B

ABBHigh Perfomance MCB – S800B 16kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

2CCS813001R0321 – S803B-D32 ABB High Perfomance MCB – S800B 16kA

Order code

Select a variant in this series

Rating
Poles
Rated voltage

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

List price

R3 154.43

Excluding VAT · per unit · volume pricing available on request

Listed in stock — availability is re-confirmed on every order

S803B-D32 — ABB order code 2CCS813001R0321. Rated current 32 A; 3P; breaking capacity 16 kA; rated voltage 400 V.

Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Printable product summary (opens in a new tab)

Accessories & add-ons 8
Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CCS813001R0321 Categories: , , Tags: , ,

Overview

2CCS813001R0321 — S803B-D32 from the ABB High Perfomance MCB – S800B 16kA range.

The S803B-D32 is a 3-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 32 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803B-D32 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803B-D32 more comfortable. Due to the fast arc extinction of S803B-D32 your application will be secured.

Key specifications: rated current 32 A; 3P; breaking capacity 16 kA; rated voltage 400 V; 50 / 60 Hz; IP20; ambient −40 … +70 °C; to IEC/EN 60947-2|IEC/EN 60898-1.

Ordering information

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order codeFilter products by 2CCS813001R0321
Product NameFilter products by S803B-D32
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by S800B
GTIN / EANFilter products by 7612271415969
RangeFilter products by High Perfomance MCB – S800B 16kA

Electrical ratings

Number of polesFilter products by 3P
Rated current (Iu)Filter products by 32 A
Rated voltage (Ue)Filter products by 400 V
Rated FrequencyFilter products by 50 / 60 Hz
Max Break CapacityFilter products by 16 kA
Pollution DegreeFilter products by 3

Power & coil

Power LossFilter products by 3.2 W, Filter products by 9.6 W

Environment & protection

Degree of protection (IP)Filter products by IP20
Ambient air temperatureFilter products by −40 … +70 °C

Standards & certification

Conformity to standardsFilter products by IEC/EN 60898-1, Filter products by IEC/EN 60947-2

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
ABB product pageView on the ABB site
Deep LinkPrintable product summary

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Accessories & add-ons 8

Higher-rated in this range 6

Same series, a larger rating — where the duty is heavier than this part covers.

More in the S800B range 8

Same series, same mounting and the same documentation set.

Similar items 6

More in High Perfomance MCB – S800B 16kA 8

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 2CCS813001R0321?

2CCS813001R0321 is the order code for S803B-D32. It belongs to our High Perfomance MCB – S800B 16kA range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
