S804B-C63
Key specifications
Rated current (Iu)Filter products by 63 A
Rated voltage (Ue)Filter products by 400 V
Number of polesFilter products by 4P
Max Break CapacityFilter products by 16 kA
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by S800B

ABBHigh Perfomance MCB – S800B 16kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

2CCS814001R0634 – S804B-C63 | ABB

Order code

Select a variant in this series

Rating
Poles
Rated voltage

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

List price

R4 580.82

Excluding VAT · per unit · volume pricing available on request

Listed in stock — availability is re-confirmed on every order

S804B-C63 — ABB order code 2CCS814001R0634. Rated current 63 A; 4P; breaking capacity 16 kA; rated voltage 400 V.

Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)

Accessories & add-ons 8
Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CCS814001R0634 Categories: , , Tags: , ,

Overview

2CCS814001R0634 — S804B-C63 from the ABB High Perfomance MCB – S800B 16kA range. Listed under High Perfomance MCB – S800B 16kA on the ABB catalogue at RMS-ABB.Africa.

About 2CCS814001R0634

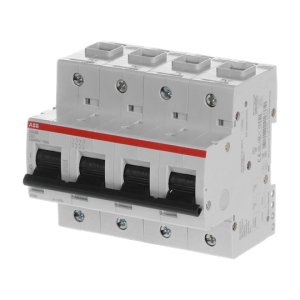

The S804B-C63 is a 4-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804B-C63 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804B-C63 more comfortable. Due to the fast arc extinction of S804B-C63 your application will be secured.

2CCS814001R0634 key specifications

Key specifications: rated current 63 A; 4P; breaking capacity 16 kA; rated voltage 400 V; 50 / 60 Hz; IP20; ambient −40 … +70 °C; to IEC/EN 60947-2|IEC/EN 60898-1.

Ordering information for 2CCS814001R0634

About the High Perfomance MCB – S800B 16kA range

High Perfomance MCB – S800B 16kA is a ABB range with 51 references listed on RMS-ABB.Africa, from 32 A to 125 A.

2CCS814001R0634 — frequently asked questions

What is the rated current of 2CCS814001R0634?

2CCS814001R0634 is rated 63 A.

How many poles does 2CCS814001R0634 have?

2CCS814001R0634 is a 4P device.

What is the breaking capacity of 2CCS814001R0634?

The catalogue states 16 kA for 2CCS814001R0634. Check the datasheet for the value at your system voltage.

Where is the datasheet for 2CCS814001R0634?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 2CCS814001R0634 a genuine ABB product?

Yes. 2CCS814001R0634 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order codeFilter products by 2CCS814001R0634
Product NameFilter products by S804B-C63
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by S800B
GTIN / EANFilter products by 7612271416379
RangeFilter products by High Perfomance MCB – S800B 16kA

Electrical ratings

Number of polesFilter products by 4P
Rated current (Iu)Filter products by 63 A
Rated voltage (Ue)Filter products by 400 V
Rated FrequencyFilter products by 50 / 60 Hz
Max Break CapacityFilter products by 16 kA
Pollution DegreeFilter products by 3

Power & coil

Power LossFilter products by 25.6 W, Filter products by 6.4 W

Environment & protection

Degree of protection (IP)Filter products by IP20
Ambient air temperatureFilter products by −40 … +70 °C

Standards & certification

Conformity to standardsFilter products by IEC/EN 60898-1, Filter products by IEC/EN 60947-2

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
ABB product pageView on the ABB site
Deep LinkPrintable product summary
360° viewOpen 360° view

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Accessories & add-ons 8

Higher-rated in this range 6

Same series, a larger rating — where the duty is heavier than this part covers.

More in the S800B range 8

Same series, same mounting and the same documentation set.

Similar items 7

More in High Perfomance MCB – S800B 16kA 8

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 2CCS814001R0634?

2CCS814001R0634 is the order code for S804B-C63. It belongs to our High Perfomance MCB – S800B 16kA range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
