Save 45%

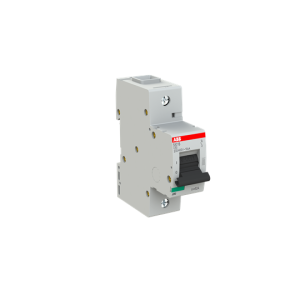

S801B-C50
Key specifications
Rated current (Iu)Filter products by 50 A
Rated voltage (Ue)Filter products by 230 V
Number of polesFilter products by 1P
Max Break CapacityFilter products by 16 kA
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by S800B

ABBHigh Perfomance MCB – S800B 16kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

2CCS811001R0504 – S801B-C50 | ABB

Order code

List R961.89 Your price R529.04

Per unit · volume pricing available on request

excl. VAT R608.40 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

S801B-C50 — ABB order code 2CCS811001R0504. Rated current 50 A; 1P; breaking capacity 16 kA; rated voltage 230 V.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Printable product summary (opens in a new tab)

Select a variant in this series

Rating50 A7 options
Poles1P4 options
Rated voltage230 V6 options

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CCS811001R0504 Categories: , , Tags: , ,

Overview

2CCS811001R0504 — S801B-C50 from the ABB High Perfomance MCB – S800B 16kA range. Listed under High Perfomance MCB – S800B 16kA on the ABB catalogue at RMS-ABB.Africa.

About 2CCS811001R0504

The S801B-C50 is a 1-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 50 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801B-C50 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S801B-C50 more comfortable. Due to the fast arc extinction of S801B-C50 your application will be secured.

2CCS811001R0504 key specifications

Key specifications: rated current 50 A; 1P; breaking capacity 16 kA; rated voltage 230 V; 50 / 60 Hz; IP20; ambient −40 … +70 °C; to IEC/EN 60947-2|IEC/EN 60898-1.

Ordering information for 2CCS811001R0504

About the High Perfomance MCB – S800B 16kA range

High Perfomance MCB – S800B 16kA is a ABB range with 51 references listed on RMS-ABB.Africa, from 32 A to 125 A.

2CCS811001R0504 — frequently asked questions

What is the rated current of 2CCS811001R0504?

2CCS811001R0504 is rated 50 A.

How many poles does 2CCS811001R0504 have?

2CCS811001R0504 is a 1P device.

What is the breaking capacity of 2CCS811001R0504?

The catalogue states 16 kA for 2CCS811001R0504. Check the datasheet for the value at your system voltage.

Where is the datasheet for 2CCS811001R0504?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 2CCS811001R0504 a genuine ABB product?

Yes. 2CCS811001R0504 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code2CCS811001R0504
Product NameFilter products by S801B-C50
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by S800B
GTIN / EAN7612271416300
RangeFilter products by High Perfomance MCB – S800B 16kA

Electrical ratings

Number of polesFilter products by 1P
Rated current (Iu)Filter products by 50 A
Rated voltage (Ue)Filter products by 230 V
Rated FrequencyFilter products by 50 / 60 Hz
Max Break CapacityFilter products by 16 kA
Pollution DegreeFilter products by 3

Power & coil

Power LossFilter products by 4.3 W

Environment & protection

Degree of protection (IP)Filter products by IP20
Ambient air temperatureFilter products by −40 … +70 °C

Standards & certification

Conformity to standardsFilter products by IEC/EN 60898-1, Filter products by IEC/EN 60947-2

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
ABB product pageView on the ABB site
Deep LinkPrintable product summary

Higher-rated in this range

6 items

Same series, a larger rating — where the duty is heavier than this part covers.

More in the S800B range

8 items

Same series, same mounting and the same documentation set.

Similar items

8 items

More in High Perfomance MCB – S800B 16kA

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 2CCS811001R0504?

2CCS811001R0504 is the order code for S801B-C50. It belongs to our High Perfomance MCB – S800B 16kA range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

What is the rated current of 2CCS811001R0504?

ABB rates S801B-C50 at 50 A. It is a 1P-pole device.

What is the breaking capacity of 2CCS811001R0504?

ABB specifies a breaking capacity of 16 kA. A breaking capacity holds at a stated voltage; check the datasheet for the value at your system voltage.

What voltage is 2CCS811001R0504 rated for?

ABB rates it for 230 V.

What is the IP rating of 2CCS811001R0504?

ABB gives it a degree of protection of IP20.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
