B24 111-100
Key specifications
Rated current (Iu)Filter products by 6 A
Rated voltage (Ue)Filter products by 220 … 240 / 380 … 415 V
Number of polesFilter products by 4P
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by B24

ABBDin Mount – Electricity Energy MeterMeteringModular Energy (kWH) Meters

2CMA100177R1000 – B24 111-100 | ABB

Order code

List R3 646.85 Your price R2 917.48

Per unit · volume pricing available on request

excl. VAT R3 355.10 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

B24 111-100 — ABB order code 2CMA100177R1000. Rated current 6 A; 4P; rated voltage 220 … 240 / 380 … 415 V; 50 / 60 Hz.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)

Ratings in this range
Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CMA100177R1000 Categories: , , Tags: ,

Overview

2CMA100177R1000 — B24 111-100 from the ABB CT Connected Meter, Pulse output range. Listed under Din Mount – Electricity Energy Meter on the ABB catalogue at RMS-ABB.Africa.

About 2CMA100177R1000

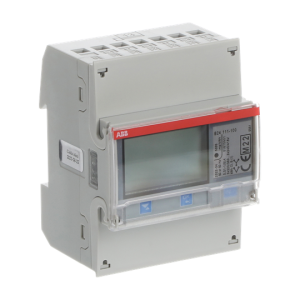

Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase transformer connectedfor active energy. One output for pulses or alarm etc. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.

2CMA100177R1000 key specifications

Key specifications: rated current 6 A; 4P; rated voltage 220 … 240 / 380 … 415 V; 50 / 60 Hz; IP20; ambient −40 … +70 °C; to EN 50470-1.

Ordering information for 2CMA100177R1000

2CMA100177R1000 — frequently asked questions

What is the rated current of 2CMA100177R1000?

2CMA100177R1000 is rated 6 A.

How many poles does 2CMA100177R1000 have?

2CMA100177R1000 is a 4P device.

Where is the datasheet for 2CMA100177R1000?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 2CMA100177R1000 a genuine ABB product?

Yes. 2CMA100177R1000 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code2CMA100177R1000
Product NameFilter products by B24 111-100
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by B24
GTIN / EAN7392696001779
RangeFilter products by CT Connected Meter, Pulse output

Electrical ratings

Number of polesFilter products by 4P
Rated current (Iu)Filter products by 6 A
Rated voltage (Ue)Filter products by 220 … 240 / 380 … 415 V
Rated FrequencyFilter products by 50 / 60 Hz

Power & coil

Power ConsumptionFilter products by 0.721 W

Environment & protection

Degree of protection (IP)Filter products by IP20
Ambient air temperatureFilter products by −40 … +70 °C

Standards & certification

Conformity to standardsFilter products by EN 50470-1

Documents

DatasheetDownload datasheet
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
Dimension drawingsDownload dimension drawings
ABB product pageView on the ABB site
Deep LinkPrintable product summary
360° viewOpen 360° view
