| Rated current (Iu) | Filter products by 65 A |
|---|---|
| Rated voltage (Ue) | Filter products by 220 … 240 / 380 … 415 V |
| Number of poles | Filter products by 3P+N |
| Degree of protection (IP) | Filter products by IP20 |
| Product Series | Filter products by B23 |
ABBDin Mount – Electricity Energy MeterMeteringPower Monitoring Systems
2CMA100169R1000 – B23 312-100 | ABB
Order code
List R5 125.62 Your price R4 100.50
Per unit · volume pricing available on request
excl. VAT R4 715.58 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
B23 312-100 — ABB order code 2CMA100169R1000. Rated current 65 A; 3P+N; rated voltage 220 … 240 / 380 … 415 V; 50 / 60 Hz.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)
Select a variant in this series
Rating65 A2 options
- 5 / 65 A
- 65 A
Poles3P+N2 options
- 3P+N
- 4P
Rated voltage220 … 240 / 380 … 415 V2 options
- 3 / 220 / 240 V
- 220 … 240 / 380 … 415 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
2CMA100169R1000 — B23 312-100 from the ABB 65A Direct Connected Meter, 2 output, 2 input, RS-485 range. Listed under Din Mount – Electricity Energy Meter on the ABB catalogue at RMS-ABB.Africa.
About 2CMA100169R1000

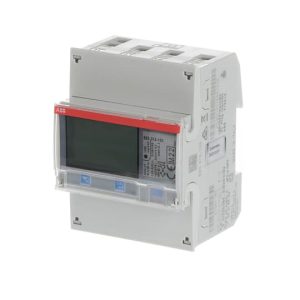

Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase direct connected for active and reactive energy. Import and export of energy in different registers and one total. Resettable register for intermediate values. Up to four tariffs. Two outputs and inputs for pulses or alarm etc. RS-485 communication over Modbus RTU or EQ Bus. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.
2CMA100169R1000 key specifications
Key specifications: rated current 65 A; 3P+N; rated voltage 220 … 240 / 380 … 415 V; 50 / 60 Hz; IP20; ambient −40 … +70 °C; to IEC 62052-11.
Ordering information for 2CMA100169R1000
- Order code:
2CMA100169R1000 - Manufacturer: ABB
- Range: 65A Direct Connected Meter, 2 output, 2 input, RS-485
- GTIN / EAN: 7392696001694
- Supplied: each
- Datasheet: manufacturer datasheet for 2CMA100169R1000
2CMA100169R1000 — frequently asked questions
What is the rated current of 2CMA100169R1000?
2CMA100169R1000 is rated 65 A.
How many poles does 2CMA100169R1000 have?
2CMA100169R1000 is a 3P+N device.
Where is the datasheet for 2CMA100169R1000?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.
Is 2CMA100169R1000 a genuine ABB product?
Yes. 2CMA100169R1000 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | 2CMA100169R1000 |
|---|---|
| Product Name | Filter products by B23 312-100 |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product Series | Filter products by B23 |
| GTIN / EAN | 7392696001694 |
| Range | Filter products by 65A Direct Connected Meter, 2 output, 2 input, RS-485 |
Electrical ratings
| Number of poles | Filter products by 3P+N |
|---|---|
| Rated current (Iu) | Filter products by 65 A |
| Rated voltage (Ue) | Filter products by 220 … 240 / 380 … 415 V |
| Rated Frequency | Filter products by 50 / 60 Hz |
Power & coil
| Power Consumption | Filter products by 0.721 W |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|---|
| Ambient air temperature | Filter products by −40 … +70 °C |
Standards & certification
| Conformity to standards | Filter products by IEC 62052-11 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Declaration of conformity | Download declaration of conformity |
| Instructions for use | Download instructions |
| ABB product page | View on the ABB site |
| Deep Link | Printable product summary |
| 360° view | Open 360° view |
More in the B23 range
1 itemsSame series, same mounting and the same documentation set.
More in the B23 range
1 items
Similar items
7 items
Similar items
7 items
2CMA100238R1000A42552100List R5 424.13 Your price R4 339.30View product
2CMA100183R1000B24 352-100List R4 764.04 Your price R3 811.23View product
2CMA170505R1000A41 412100List R4 673.35 Your price R3 738.68View product
2CMA170540R1000A44 452-100List R5 782.92 Your price R4 626.33View product
2CMA100155R1000B21 312-100List R3 807.17 Your price R3 045.74View product
2CMA100177R1000B24 111-100List R3 646.85 Your price R2 917.48View product
2CMA170545R1000A44 552-100List R6 914.89 Your price R5 531.91View product
More in Din Mount – Electricity Energy Meter
4 items
More in Din Mount – Electricity Energy Meter
4 items
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is 2CMA100169R1000?
2CMA100169R1000 is the order code for B23 312-100. It belongs to our Din Mount – Electricity Energy Meter range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.
What is the rated current of 2CMA100169R1000?
ABB rates B23 312-100 at 65 A. It is a 3P+N-pole device.
What voltage is 2CMA100169R1000 rated for?
ABB rates it for 220 … 240 (Un) N-L, 380 … 415 (Un) L-L.
What is the IP rating of 2CMA100169R1000?
ABB gives it a degree of protection of IP20.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
