ABBMCB – S200P 25kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

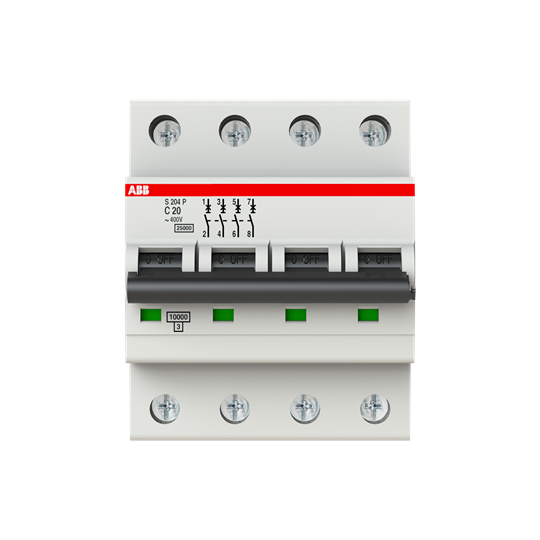

2CDS284001R0204 – S204P-C20 ABB MCB – S200P 25kA
Order code
R2 342.15
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Buy 2CDS284001R0204 – S204P-C20 ABB MCB – S200P 25kA from ABB. Genuine ABB component for automation, motor control and electrical installations. S204P-C20
Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Open deep link (opens in a new tab)
Accessories & add-ons 8
- Ekip Multimeter Display front panel1SDA074192R1 Original price was: R12 786.54.R7 032.60Current price is: R7 032.60.Add
- Ekip UP Control1SDA083362R1R80 515.78Add
- SW Voltages Protection for Emax 21SDA105227R1 Original price was: R23 776.17.R13 076.89Current price is: R13 076.89.Add
- SW Measuring package for Emax 21SDA107525R1 Original price was: R12 142.66.R6 678.47Current price is: R6 678.47.Add
- CS 400-1600A 4P type B1SDA083367R1R4 455.91Add
- CS 100-2000A 3P + COPPER type A1SDA083368R1R16 719.89Add
- CS 2000-4000A 3P + COPPER type A1SDA083370R1R24 781.42Add
- CS 2000-4000A 4P + COPPER type A1SDA083371R1R33 040.54Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
4P 20A C – Curve 25kA System pro M compact S200P miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 25 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200P comply with IEC/EN 60898-1, IEC/EN 609 47-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200P to save 50% space.
2CDS284001R0204 – S204P-C20 ABB MCB – S200P 25kA is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution applications.
ABB products are widely used across commercial and industrial installations where reliability, safety, and long operational life are required.
Applications
- Industrial automation
- Motor control systems
- Power distribution infrastructure
- Commercial electrical installations
Browse Related Categories
MCB – S200P 25kA | Miniature Circuit Breakers (MCB's) | Power Distribution & Protection
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by 2CDS284001R0204 |
|---|---|
| Product Name | Filter products by S204P-C20 |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product Series | Filter products by S200P |
| International GTIN | Filter products by 4016779590792 |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|---|
| Rated current (Iu) | Filter products by 20 A |
| Rated voltage (Ue) | Filter products by 12 V, Filter products by 440 V |
| Rated operational voltage | Filter products by 400 V |
| Operating Voltage | Filter products by 12 V, Filter products by 440 V |
| Rated Frequency | Filter products by 50 / 60 |
| Max Break Capacity | Filter products by 25kA |
| Pollution Degree | Filter products by 3.0 |
Power & coil
| Power Loss | Filter products by 11.6 W, Filter products by 2.9 W |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20, Filter products by IP40 |
|---|---|
| Ambient air temperature | Filter products by -40 … 70, Filter products by '-25 … 55 |
