| Rated current (Iu) | Filter products by 10 A |
|---|---|
| Rated voltage (Ue) | Filter products by 12 V, Filter products by 253 V, Filter products by 72 V |
| Number of poles | Filter products by 1P |
| Max Break Capacity | Filter products by 15kA |
| Degree of protection (IP) | Filter products by IP20, Filter products by IP40 |
| Product Series | Filter products by S200M |
ABBMCB – S200M 15kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

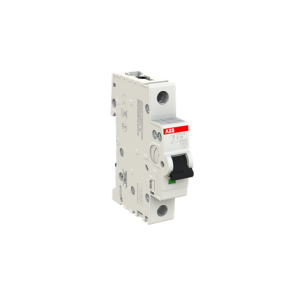

2CDS271001R0104 – S201M-C10 ABB MCB – S200M 15kA
Order code
Original price was: R320.44.R176.24Current price is: R176.24.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Buy 2CDS271001R0104 – S201M-C10 ABB MCB – S200M 15kA from ABB. Genuine ABB component for automation, motor control and electrical installations. S201M-C10
Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)
Accessories & add-ons 8
- Ekip Multimeter Display front panel1SDA074192R1 Original price was: R12 786.54.R7 032.60Current price is: R7 032.60.Add
- Ekip UP Control1SDA083362R1R80 515.78Add
- CS 400-1600A 4P type B1SDA083367R1R4 455.91Add
- CS 100-2000A 3P + COPPER type A1SDA083368R1R16 719.89Add
- CS 2000-4000A 3P + COPPER type A1SDA083370R1R24 781.42Add
- CS 2000-4000A 4P + COPPER type A1SDA083371R1R33 040.54Add
- Open CS 3P type C 1201SDA083372R1R23 147.59Add
- Open CS 4P type C 1201SDA083373R1R30 863.00Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
1P 10A C – Curve 15kA System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
2CDS271001R0104 – S201M-C10 ABB MCB – S200M 15kA is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution applications.
ABB products are widely used across commercial and industrial installations where reliability, safety, and long operational life are required.
Applications
- Industrial automation
- Motor control systems
- Power distribution infrastructure
- Commercial electrical installations
Browse Related Categories
MCB – S200M 15kA | Miniature Circuit Breakers (MCB's) | Power Distribution & Protection
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by 2CDS271001R0104 |
|---|---|
| Product Name | Filter products by S201M-C10 |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product Series | Filter products by S200M |
| International GTIN | Filter products by 4016779549981 |
Electrical ratings
| Number of poles | Filter products by 1P |
|---|---|
| Rated current (Iu) | Filter products by 10 A |
| Rated voltage (Ue) | Filter products by 12 V, Filter products by 253 V, Filter products by 72 V |
| Rated operational voltage | Filter products by 230 V |
| Operating Voltage | Filter products by 12 V, Filter products by 253 V, Filter products by 72 V |
| Rated Frequency | Filter products by 50 / 60 |
| Max Break Capacity | Filter products by 15kA |
| Pollution Degree | Filter products by 3.0 |
Power & coil
| Power Loss | Filter products by 2.1 W |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20, Filter products by IP40 |
|---|---|
| Ambient air temperature | Filter products by -40 … 70, Filter products by '-25 … 55 |
Documents
| Datasheet | Download datasheet |
|---|---|
| RoHS declaration | Download RoHS declaration |
| Declaration of conformity | Download declaration of conformity |
| Dimension drawings | Download dimension drawings |
| ABB product page | View on the ABB site |
