Save 45%
S202-D25
Key specifications
Rated current (Iu)Filter products by 25 A
Rated voltage (Ue)Filter products by 12 / 125 / 440 V
Number of polesFilter products by 2P
Max Break CapacityFilter products by 10 kA
Tripping curveFilter products by D
Degree of protection (IP)Filter products by IP20 / IP40
Product SeriesFilter products by S200

ABBMCB – S200 10kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

2CDS252001R0251 – S202-D25 | ABB

Order code

List R762.86 Your price R419.57

Per unit · volume pricing available on request

excl. VAT R482.51 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

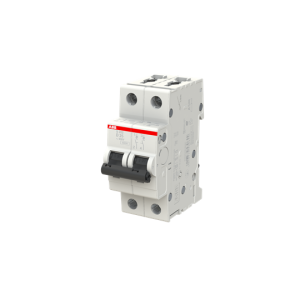

S202-D25 — ABB order code 2CDS252001R0251. Rated current 25 A; 2P; breaking capacity 10 kA; rated voltage 12 / 125 / 440 V.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Printable product summary (opens in a new tab)

Select a variant in this series

Rating25 A10 options
Poles2P6 options
CurveD2 options
Rated voltage12 / 125 / 440 V4 options

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CDS252001R0251 Categories: , , Tags: ,

Overview

2CDS252001R0251 — S202-D25 from the ABB 2P 25A D – Curve 10kA range. Listed under MCB – S200 10kA on the ABB catalogue at RMS-ABB.Africa.

About 2CDS252001R0251

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

2CDS252001R0251 key specifications

Key specifications: rated current 25 A; 2P; breaking capacity 10 kA; rated voltage 12 / 125 / 440 V; rated operational voltage 400 / 440 V; 50 / 60 Hz; IP20 / IP40; ambient −25 … +55 / −40 … +70 °C.

Ordering information for 2CDS252001R0251

2CDS252001R0251 — frequently asked questions

What is the rated current of 2CDS252001R0251?

2CDS252001R0251 is rated 25 A.

How many poles does 2CDS252001R0251 have?

2CDS252001R0251 is a 2P device.

What is the breaking capacity of 2CDS252001R0251?

The catalogue states 10 kA for 2CDS252001R0251. Check the datasheet for the value at your system voltage.

Where is the datasheet for 2CDS252001R0251?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 2CDS252001R0251 a genuine ABB product?

Yes. 2CDS252001R0251 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code2CDS252001R0251
Product NameFilter products by S202-D25
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by S200
GTIN / EAN4016779530644
RangeFilter products by 2P 25A D – Curve 10kA

Electrical ratings

Number of polesFilter products by 2P
Rated current (Iu)Filter products by 25 A
Rated voltage (Ue)Filter products by 12 / 125 / 440 V
Rated operational voltageFilter products by 400 / 440 V
Rated FrequencyFilter products by 50 / 60 Hz
Tripping curveFilter products by D
Max Break CapacityFilter products by 10 kA
Pollution DegreeFilter products by 3

Power & coil

Power LossFilter products by 3.1 W, Filter products by 6.2 W

Environment & protection

Degree of protection (IP)Filter products by IP20 / IP40
Ambient air temperatureFilter products by −25 … +55 / −40 … +70 °C

Standards & certification

Conformity to standardsFilter products by IEC/EN 60898-1, Filter products by IEC/EN 60947-2, Filter products by UL 1077

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Dimension drawingsDownload dimension drawings
ABB product pageView on the ABB site
Deep LinkPrintable product summary

Other specifications

Breaking capacity icuFilter products by 10 kA
Breaking capacity icnFilter products by 6 kA

Higher-rated in this range

6 items

Same series, a larger rating — where the duty is heavier than this part covers.

More in the S200 range

8 items

Same series, same mounting and the same documentation set.

Similar items

7 items

More in MCB – S200 10kA

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 2CDS252001R0251?

2CDS252001R0251 is the order code for S202-D25. It belongs to our MCB – S200 10kA range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

What is the rated current of 2CDS252001R0251?

ABB rates S202-D25 at 25 A. It is a 2P-pole device.

What is the breaking capacity of 2CDS252001R0251?

ABB specifies a breaking capacity of 10 kA. A breaking capacity holds at a stated voltage; check the datasheet for the value at your system voltage.

What voltage is 2CDS252001R0251 rated for?

ABB rates it for 12, 125, 440.

What tripping curve is 2CDS252001R0251?

S202-D25 is a D curve device — the curve sets how much inrush it tolerates before tripping on a short circuit.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
