Save 45%
S802N-C10
Key specifications
Rated current (Iu)Filter products by 10 A
Rated voltage (Ue)Filter products by 230/400 / 12 V
Number of polesFilter products by 2P
Max Break CapacityFilter products by 36 kA
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by S800N

ABBHigh Perfomance MCB – S800N 36kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

2CCS892001R0104 – S802N-C10 ABB High Perfomance MCB – S800N 36kA

Order code

Select a variant in this series

Rating
Poles
Rated voltage

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

List price

R1 362.44

Excluding VAT · per unit · volume pricing available on request

Listed in stock — availability is re-confirmed on every order

S802N-C10 — ABB order code 2CCS892001R0104. Rated current 10 A; 2P; breaking capacity 36 kA; rated voltage 230/400 / 12 V.

Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Printable product summary (opens in a new tab)

Accessories & add-ons 8
Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CCS892001R0104 Categories: , , Tags: ,

Overview

2CCS892001R0104 — S802N-C10 from the ABB 2P 10A C – Curve 36kA range.

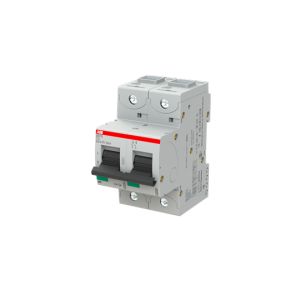

The S802N-C10 is a 2-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802N-C10 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802N-C10 more comfortable. Due to the fast arc extinction of S802N-C10 your application will be secured.

Key specifications: rated current 10 A; 2P; breaking capacity 36 kA; rated voltage 230/400 / 12 V; rated operational voltage 400 / 690 V; 50 / 60 Hz; IP20; ambient −40 … +70 °C.

Ordering information

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order codeFilter products by 2CCS892001R0104
Product NameFilter products by S802N-C10
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by S800N
GTIN / EANFilter products by 7612271204402
RangeFilter products by 2P 10A C – Curve 36kA

Electrical ratings

Number of polesFilter products by 2P
Rated current (Iu)Filter products by 10 A
Rated voltage (Ue)Filter products by 230/400 / 12 V
Rated operational voltageFilter products by 400 / 690 V
Rated FrequencyFilter products by 50 / 60 Hz
Max Break CapacityFilter products by 36 kA
Pollution DegreeFilter products by 3

Power & coil

Power LossFilter products by 1.5 W, Filter products by 3 W

Environment & protection

Degree of protection (IP)Filter products by IP20
Ambient air temperatureFilter products by −40 … +70 °C

Standards & certification

Conformity to standardsFilter products by IEC/EN 60898-1, Filter products by IEC/EN 60947-2

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
ABB product pageView on the ABB site
Deep LinkPrintable product summary

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Accessories & add-ons 8

Higher-rated in this range 6

Same series, a larger rating — where the duty is heavier than this part covers.

More in the S800N range 8

Same series, same mounting and the same documentation set.

Similar items 4

More in High Perfomance MCB – S800N 36kA 8

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 2CCS892001R0104?

2CCS892001R0104 is the order code for S802N-C10. It belongs to our High Perfomance MCB – S800N 36kA range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
