Save 45%

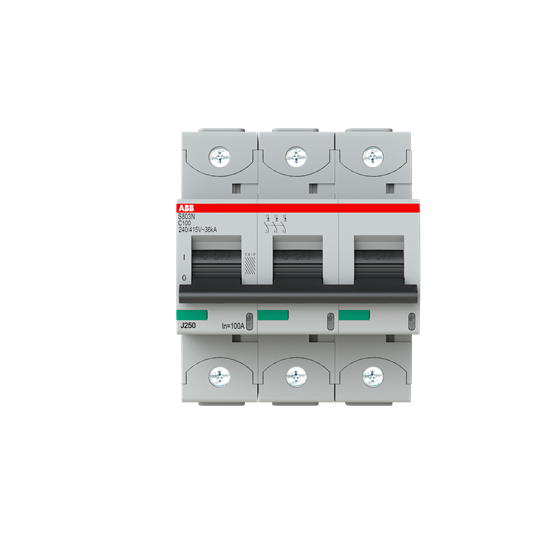

S803N-C100
Key specifications
Rated current (Iu)Filter products by 100 A
Rated voltage (Ue)Filter products by 690 / 375 / 400 V
Number of polesFilter products by 3P
Max Break CapacityFilter products by 36 kA
Tripping curveFilter products by C
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by S800N

ABBHigh Perfomance MCB – S800N 36kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

2CCS893001R0824 – S803N-C100 | ABB

Order code

List R4 261.84 Your price R2 344.01

Per unit · volume pricing available on request

excl. VAT R2 695.61 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

S803N-C100 — ABB order code 2CCS893001R0824. Rated current 100 A; 3P; breaking capacity 36 kA; rated voltage 690 / 375 / 400 V.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Download instructions (opens in a new tab)

Select a variant in this series

Rating100 A11 options
Poles3P4 options
Rated voltage690 / 375 / 400 V5 options

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CCS893001R0824 Categories: , , Tags: , ,

Overview

2CCS893001R0824 — S803N-C100 from the ABB High Perfomance MCB – S800N 36kA range. Listed under High Perfomance MCB – S800N 36kA on the ABB catalogue at RMS-ABB.Africa.

About 2CCS893001R0824

The S803N-C100 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 100 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803N-C100 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803N-C100 more comfortable. Due to the fast arc extinction of S803N-C100 your application will be secured.

2CCS893001R0824 key specifications

Key specifications: rated current 100 A; 3P; breaking capacity 36 kA; rated voltage 690 / 375 / 400 V; 50 … 60 Hz; IP20; ambient −25 … +60 °C; to IEC/EN 60947-2, IEC/EN 60898-1.

Ordering information for 2CCS893001R0824

About the High Perfomance MCB – S800N 36kA range

High Perfomance MCB – S800N 36kA is a ABB range with 12 references listed on RMS-ABB.Africa, from 80 A to 125 A.

2CCS893001R0824 — frequently asked questions

What is the rated current of 2CCS893001R0824?

2CCS893001R0824 is rated 100 A.

How many poles does 2CCS893001R0824 have?

2CCS893001R0824 is a 3P device.

What is the breaking capacity of 2CCS893001R0824?

The catalogue states 36 kA for 2CCS893001R0824. Check the datasheet for the value at your system voltage.

Where is the datasheet for 2CCS893001R0824?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 2CCS893001R0824 a genuine ABB product?

Yes. 2CCS893001R0824 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code2CCS893001R0824
Product NameFilter products by S803N-C100
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by S800N
GTIN / EAN7612271204624
RangeFilter products by High Perfomance MCB – S800N 36kA

Electrical ratings

Number of polesFilter products by 3P
Rated current (Iu)Filter products by 100 A
Rated voltage (Ue)Filter products by 690 / 375 / 400 V
Rated FrequencyFilter products by 50 … 60 Hz
Tripping curveFilter products by C
Max Break CapacityFilter products by 36 kA
Pollution DegreeFilter products by 3

Power & coil

Power LossFilter products by 24 W, Filter products by 8 W

Environment & protection

Degree of protection (IP)Filter products by IP20
Ambient air temperatureFilter products by −25 … +60 °C
Ambient temperatureFilter products by '-25…60

Standards & certification

Conformity to standardsFilter products by IEC/EN 60947-2, IEC/EN 60898-1

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
ABB product pageView on the ABB site

Higher-rated in this range

4 items

Same series, a larger rating — where the duty is heavier than this part covers.

More in the S800N range

8 items

Same series, same mounting and the same documentation set.

Similar items

7 items

More in High Perfomance MCB – S800N 36kA

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 2CCS893001R0824?

2CCS893001R0824 is the order code for S803N-C100. It belongs to our High Perfomance MCB – S800N 36kA range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

What is the rated current of 2CCS893001R0824?

ABB rates S803N-C100 at 100 A. It is a 3P-pole device.

What is the breaking capacity of 2CCS893001R0824?

ABB specifies a breaking capacity of 36 kA. A breaking capacity holds at a stated voltage; check the datasheet for the value at your system voltage.

What voltage is 2CCS893001R0824 rated for?

ABB rates it for 375, 400, 690.

What tripping curve is 2CCS893001R0824?

S803N-C100 is a C curve device — the curve sets how much inrush it tolerates before tripping on a short circuit.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
