Save 45%

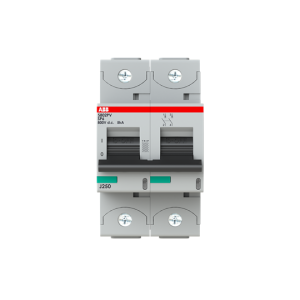

S802PV-SP62
Key specifications
Rated current (Iu)Filter products by 6 A
Rated voltage (Ue)Filter products by 800 V
Number of polesFilter products by 2P
Max Break CapacityFilter products by 5 kA
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by S800PV

ABBHigh Perfomance MCB – S800 PV 5kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

2CCF019643R0001 – S802PV-SP62 | ABB

Order code

List R5 581.90 Your price R3 070.05

Per unit · volume pricing available on request

excl. VAT R3 530.56 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

S802PV-SP62 — ABB order code 2CCF019643R0001. Rated current 6 A; 2P; breaking capacity 5 kA; rated voltage 800 V.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Printable product summary (opens in a new tab)

Select a variant in this series

Rating6 A15 options
Poles2P3 options
Rated voltage800 V3 options

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CCF019643R0001 Categories: , , Tags: ,

Overview

2CCF019643R0001 — S802PV-SP62 from the ABB 2P 6A 800V DC range. Listed under High Perfomance MCB – S800 PV 5kA on the ABB catalogue at RMS-ABB.Africa.

About 2CCF019643R0001

The S802PV-SP6 is a 2-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 6 A. It is a current limiting device with a maximum breaking capacity of 5kA at 800V. It can be used for voltages up to 800V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802PV-SP6 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-SP6 more comfortable. Due to the fast arc extinction of S802PV-SP6 your application will be secured.

2CCF019643R0001 key specifications

Key specifications: rated current 6 A; 2P; breaking capacity 5 kA; rated voltage 800 V; IP20; ambient −40 … +70 °C; to IEC/EN 60947-2.

Ordering information for 2CCF019643R0001

2CCF019643R0001 — frequently asked questions

What is the rated current of 2CCF019643R0001?

2CCF019643R0001 is rated 6 A.

How many poles does 2CCF019643R0001 have?

2CCF019643R0001 is a 2P device.

What is the breaking capacity of 2CCF019643R0001?

The catalogue states 5 kA for 2CCF019643R0001. Check the datasheet for the value at your system voltage.

Where is the datasheet for 2CCF019643R0001?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 2CCF019643R0001 a genuine ABB product?

Yes. 2CCF019643R0001 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code2CCF019643R0001
Product NameFilter products by S802PV-SP6
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by S800PV
GTIN / EAN7612271472115
RangeFilter products by 2P 6A 800V DC

Electrical ratings

Number of polesFilter products by 2P
Rated current (Iu)Filter products by 6 A
Rated voltage (Ue)Filter products by 800 V
Rated FrequencyFilter products by 0 Hz
Max Break CapacityFilter products by 5 kA
Pollution DegreeFilter products by 2

Power & coil

Power LossFilter products by 1.8 W, Filter products by 3.6 W

Environment & protection

Degree of protection (IP)Filter products by IP20
Ambient air temperatureFilter products by −40 … +70 °C

Standards & certification

Conformity to standardsFilter products by IEC/EN 60947-2

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
ABB product pageView on the ABB site
Deep LinkPrintable product summary

Higher-rated in this range

6 items

Same series, a larger rating — where the duty is heavier than this part covers.

More in the S800PV range

8 items

Same series, same mounting and the same documentation set.

Similar items

6 items

More in High Perfomance MCB – S800 PV 5kA

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 2CCF019643R0001?

2CCF019643R0001 is the order code for S802PV-SP62. It belongs to our High Perfomance MCB – S800 PV 5kA range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

What is the rated current of 2CCF019643R0001?

ABB rates S802PV-SP62 at 6 A. It is a 2P-pole device.

What is the breaking capacity of 2CCF019643R0001?

ABB specifies a breaking capacity of 5 kA. A breaking capacity holds at a stated voltage; check the datasheet for the value at your system voltage.

What voltage is 2CCF019643R0001 rated for?

ABB rates it for 800 V.

What is the IP rating of 2CCF019643R0001?

ABB gives it a degree of protection of IP20.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
