ABBHigh Perfomance MCB – S800 PV 5kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection
2CCF019600R0001 – S802PV-SP20 ABB High Perfomance MCB – S800 PV 5kA
Order code
Original price was: R5 581.90.R3 070.04Current price is: R3 070.04.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Buy 2CCF019600R0001 – S802PV-SP20 ABB High Perfomance MCB – S800 PV 5kA from ABB. Genuine ABB component for automation, motor control and electrical installatio S802PV-SP20
Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Open deep link (opens in a new tab)
Accessories & add-ons 8
- Ekip Multimeter Display front panel1SDA074192R1 Original price was: R12 786.54.R7 032.60Current price is: R7 032.60.Add
- Ekip UP Control1SDA083362R1R80 515.78Add
- SW Measuring package for Emax 21SDA107525R1 Original price was: R12 142.66.R6 678.47Current price is: R6 678.47.Add
- CS 400-1600A 4P type B1SDA083367R1R4 455.91Add
- CS 100-2000A 3P + COPPER type A1SDA083368R1R16 719.89Add
- CS 2000-4000A 3P + COPPER type A1SDA083370R1R24 781.42Add
- CS 2000-4000A 4P + COPPER type A1SDA083371R1R33 040.54Add
- Open CS 3P type C 1201SDA083372R1R23 147.59Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
2P 20A 800V DC The S802PV-SP20 is a 2-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 20 A. It is a current limiting device with a maximum breaking capacity of 5kA at 800V. It can be used for voltages up to 800V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802PV-SP20 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-SP20 more comfortable. Due to the fast arc extinction of S802PV-SP20 your application will be secured.
2CCF019600R0001 – S802PV-SP20 ABB High Perfomance MCB – S800 PV 5kA is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution applications.
ABB products are widely used across commercial and industrial installations where reliability, safety, and long operational life are required.
Applications
- Industrial automation
- Motor control systems
- Power distribution infrastructure
- Commercial electrical installations
Browse Related Categories
High Perfomance MCB – S800 PV 5kA | Miniature Circuit Breakers (MCB's) | Power Distribution & Protection
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by 2CCF019600R0001 |
|---|---|
| Product Name | Filter products by S802PV-SP20 |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product Series | Filter products by S800PV |
| International GTIN | Filter products by 7612271471255 |
Electrical ratings
| Number of poles | Filter products by 2P |
|---|---|
| Rated current (Iu) | Filter products by 20 A |
| Rated voltage (Ue) | Filter products by 800 V |
| Rated operational voltage | Filter products by 800 V |
| Operating Voltage | Filter products by 800 V |
| Rated Frequency | Filter products by 0 Hz |
| Max Break Capacity | Filter products by 5kA |
| Pollution Degree | Filter products by 2.0 |
Power & coil
| Power Loss | Filter products by 3.5 W, Filter products by 7 W |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|---|
| Ambient air temperature | Filter products by '-40 … 70 |
Documents
| Datasheet | Download datasheet |
|---|---|
| RoHS declaration | Download RoHS declaration |
| Declaration of conformity | Download declaration of conformity |
| Instructions for use | Download instructions |
| ABB product page | View on the ABB site |
| Deep Link | Open deep link |
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Accessories & add-ons
1SDA074192R1Ekip Multimeter Display front panel Original price was: R12 786.54.R7 032.60Current price is: R7 032.60.View product
1SDA083362R1Ekip UP ControlR80 515.78View product
1SDA107525R1SW Measuring package for Emax 2 Original price was: R12 142.66.R6 678.47Current price is: R6 678.47.View product
1SDA083367R1CS 400-1600A 4P type BR4 455.91View product
1SDA083368R1CS 100-2000A 3P + COPPER type AR16 719.89View product- 1SDA083370R1CS 2000-4000A 3P + COPPER type AR24 781.42View product
- 1SDA083371R1CS 2000-4000A 4P + COPPER type AR33 040.54View product
1SDA083372R1Open CS 3P type C 120R23 147.59View product
Higher-rated in this range
Same series, a larger rating — where the duty is heavier than this part covers.

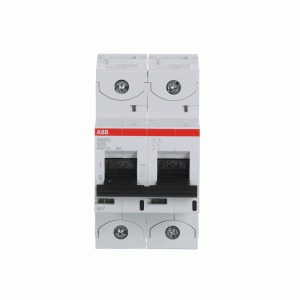

2CCF019601R0001S802PV-SP25 Original price was: R5 581.90.R3 070.04Current price is: R3 070.04.View product
2CCF019614R0001S803PV-SP25 Original price was: R7 860.60.R4 323.33Current price is: R4 323.33.View product
2CCF019626R0001S804PV-SP25 Original price was: R10 783.02.R5 930.66Current price is: R5 930.66.View product
2CCF019615R0001S803PV-SP3 Original price was: R7 860.60.R4 323.33Current price is: R4 323.33.View product

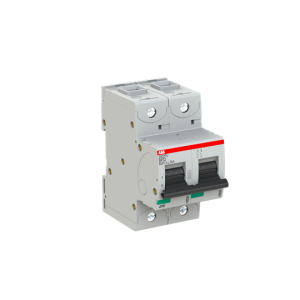

2CCF019602R0001S802PV-SP32 Original price was: R5 581.90.R3 070.04Current price is: R3 070.04.View product
2CCF019627R0001S804PV-SP3 Original price was: R10 783.02.R5 930.66Current price is: R5 930.66.View product
More in the S800PV range
Same series, same mounting and the same documentation set.
2CCF019624R0001S804PV-SP16 Original price was: R10 952.69.R6 023.98Current price is: R6 023.98.View product
2CCF019612R0001S803PV-SP16 Original price was: R7 984.17.R4 391.29Current price is: R4 391.29.View product
2CCF019644R0001S802PV-SP82 Original price was: R5 581.90.R3 070.04Current price is: R3 070.04.View product
2CCF019643R0001S802PV-SP62 Original price was: R5 581.90.R3 070.04Current price is: R3 070.04.View product
2CCF019633R0001S804PV-SP125 Original price was: R15 855.59.R8 720.58Current price is: R8 720.58.View product
2CCF019632R0001S804PV-SP100 Original price was: R15 565.57.R8 561.06Current price is: R8 561.06.View product
2CCF019629R0001S804PV-SP5 Original price was: R12 046.28.R6 625.45Current price is: R6 625.45.View product
2CCF019628R0001S804PV-SP4 Original price was: R12 046.28.R6 625.45Current price is: R6 625.45.View product
Similar items
2CCF019598R0001S802PV-SP13 Original price was: R5 581.90.R3 070.04Current price is: R3 070.04.View product

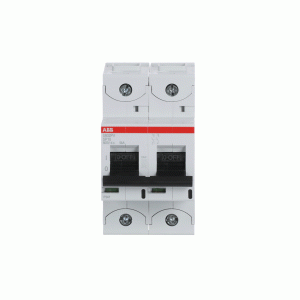

2CCF019597R0001S802PV-SP10 Original price was: R5 581.90.R3 070.04Current price is: R3 070.04.View product
2CCF019596R0001S802PV-SP5 Original price was: R5 581.90.R3 070.04Current price is: R3 070.04.View product

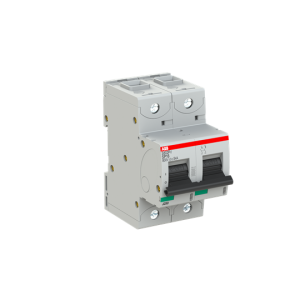

2CCF019599R0001S802PV-SP16 Original price was: R5 669.03.R3 117.96Current price is: R3 117.96.View product
More in High Perfomance MCB – S800 PV 5kA
2CCF019616R0001S803PV-SP4 Original price was: R8 791.43.R4 835.28Current price is: R4 835.28.View product
2CCF019606R0001S802PV-SP80 Original price was: R8 046.46.R4 425.55Current price is: R4 425.55.View product
2CCF019605R0001S802PV-SP63 Original price was: R6 233.19.R3 428.25Current price is: R3 428.25.View product

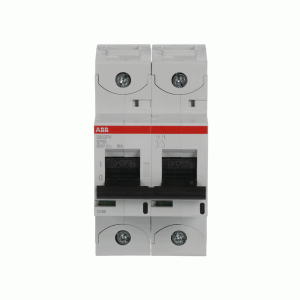

2CCF019604R0001S802PV-SP50 Original price was: R6 233.19.R3 428.25Current price is: R3 428.25.View product
