Save 45%

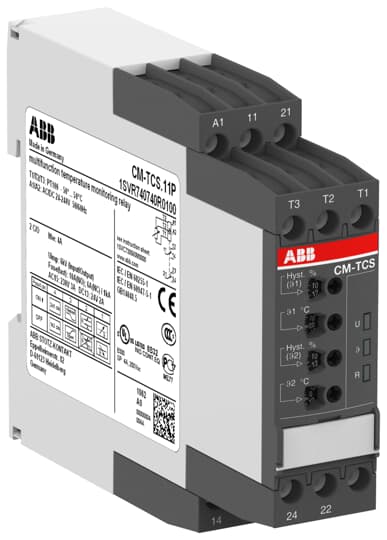

CM-TCS.11P Temperature monitoring relay
Key specifications
Coil voltage (Uc)Filter products by 24 … 240 V
Degree of protection (IP)Filter products by IP50 / IP20
Product SeriesFilter products by CM-TCS

ABBMonitoring DevicesTemperature Monitoring RelaysTimers and Control Relays

1SVR740740R0100 – CM-TCS.11P Temperature monitoring relay | ABB

Order code

List R4 836.82 Your price R2 660.25

Per unit · volume pricing available on request

excl. VAT R3 059.29 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

CM-TCS.11P Temperature monitoring relay — ABB order code 1SVR740740R0100. 24 … 240 V coil; 50 / 60 Hz / DC; IP50 / IP20; ambient −40 … +60 / −40 … +85 °C.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Printable product summary (opens in a new tab)

Select a variant in this series

Coil voltage24 … 240 V2 options

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 1SVR740740R0100 Categories: , , Tags: , ,

Overview

1SVR740740R0100 — CM-TCS.11P Temperature monitoring relay from the ABB CM-TCS.11P – 24-240V AC/DC, measuring -50…+50 °C, sensor PT100 range. Listed under Temperature Monitoring Relays on the ABB catalogue at RMS-ABB.Africa.

About 1SVR740740R0100

The CM-TCS.11P relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 – 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.11P is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.11P monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is -50..+50°C. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.

1SVR740740R0100 key specifications

Key specifications: 24 … 240 V coil; 50 / 60 Hz / DC; IP50 / IP20; ambient −40 … +60 / −40 … +85 °C; measuring range -50 … 50; to CAN/CSA C22.2 No.60947-5-1|IEC/EN 60255-26|IEC/EN 60255-27|IEC/EN 61000-6-2|IEC/EN 61000-6-3|IEC/EN 63000|UL 60947-5-1|IEC/EN 60947-5-1.

Ordering information for 1SVR740740R0100

  • Order code: 1SVR740740R0100
  • Manufacturer: ABB
  • Range: CM-TCS.11P – 24-240V AC/DC, measuring -50…+50 °C, sensor PT100
  • GTIN / EAN: 4016779852777
  • Supplied: each
  • Datasheet: manufacturer datasheet for 1SVR740740R0100

1SVR740740R0100 — frequently asked questions

What coil or control voltage does 1SVR740740R0100 use?

1SVR740740R0100 is supplied with a 24 … 240 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.

Where is the datasheet for 1SVR740740R0100?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SVR740740R0100 a genuine ABB product?

Yes. 1SVR740740R0100 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code1SVR740740R0100
Product NameFilter products by CM-TCS.11P
BrandFilter products by ABB, ABB Group, ABB Limited
Product typeFilter products by Temperature monitoring relay, temperature switch, thermal monitoring, thermal monitors, temperature monitoring
Product SeriesFilter products by CM-TCS
GTIN / EAN4016779852777
RangeFilter products by CM-TCS.11P – 24-240V AC/DC, measuring -50…+50 °C, sensor PT100

Electrical ratings

Rated Control Supply VoltageFilter products by 24 … 240
Rated FrequencyFilter products by 50 / 60 Hz / DC
Pollution DegreeFilter products by 3

Power & coil

Coil voltage (Uc)Filter products by 24 … 240 V
Power LossFilter products by 2 W

Sensing & measurement

Measuring RangeFilter products by -50 … 50

Environment & protection

Degree of protection (IP)Filter products by IP50 / IP20
Ambient air temperatureFilter products by −40 … +60 / −40 … +85 °C

Standards & certification

Conformity to standardsFilter products by CAN/CSA C22.2 No.60947-5-1, Filter products by IEC/EN 60255-26, Filter products by IEC/EN 60255-27, Filter products by IEC/EN 60947-5-1, Filter products by IEC/EN 61000-6-2, Filter products by IEC/EN 61000-6-3, Filter products by IEC/EN 63000, Filter products by UL 60947-5-1

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Dimension drawingsDownload dimension drawings
ABB product pageView on the ABB site
Deep LinkPrintable product summary

More in the CM-TCS range

8 items

Same series, same mounting and the same documentation set.

Similar items

5 items

More in Monitoring Devices

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 1SVR740740R0100?

1SVR740740R0100 is the order code for CM-TCS.11P Temperature monitoring relay. It belongs to our Monitoring Devices range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

What control voltage does 1SVR740740R0100 take?

ABB specifies a control voltage of 24 … 240 V.

What is the IP rating of 1SVR740740R0100?

ABB gives it a degree of protection of IP50 / IP20.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
