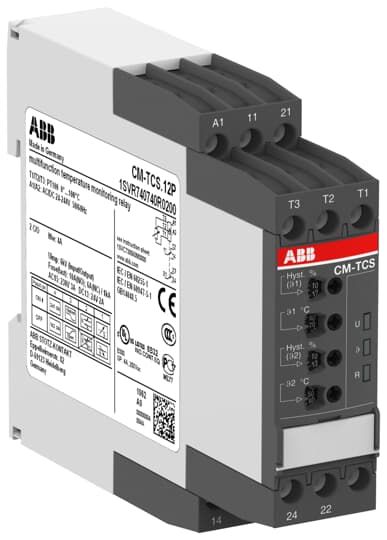

1SVR740740R0200 – CM-TCS.12P Temperature monitoring relay | ABB
Order code
List R4 836.82 Your price R2 660.25
Per unit · volume pricing available on request
excl. VAT R3 059.29 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
CM-TCS.12P Temperature monitoring relay — ABB order code 1SVR740740R0200. 24 … 240 V coil; 50 / 60 Hz / DC; IP50 / IP20; ambient −40 … +60 / −40 … +85 °C.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Printable product summary (opens in a new tab)
Select a variant in this series
Coil voltage24 … 240 V2 options
- 24 V
- 24 … 240 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
1SVR740740R0200 — CM-TCS.12P Temperature monitoring relay from the ABB CM-TCS.12P – 24-240V AC/DC, measuring 0…+100 °C, sensor PT100 range. Listed under Temperature Monitoring Relays on the ABB catalogue at RMS-ABB.Africa.
About 1SVR740740R0200
The CM-TCS.12P relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 – 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.12P is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.12P monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is 0..+100°C. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
1SVR740740R0200 key specifications
Key specifications: 24 … 240 V coil; 50 / 60 Hz / DC; IP50 / IP20; ambient −40 … +60 / −40 … +85 °C; measuring range 0 … 100; to CAN/CSA C22.2 No.60947-5-1|IEC/EN 60255-26|IEC/EN 60255-27|IEC/EN 61000-6-2|IEC/EN 61000-6-3|IEC/EN 63000|UL 60947-5-1|IEC/EN 60947-5-1.
Ordering information for 1SVR740740R0200
- Order code:
1SVR740740R0200 - Manufacturer: ABB
- Range: CM-TCS.12P – 24-240V AC/DC, measuring 0…+100 °C, sensor PT100
- GTIN / EAN: 4016779852784
- Supplied: each
- Datasheet: manufacturer datasheet for 1SVR740740R0200
1SVR740740R0200 — frequently asked questions
What coil or control voltage does 1SVR740740R0200 use?
1SVR740740R0200 is supplied with a 24 … 240 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
Where is the datasheet for 1SVR740740R0200?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.
Is 1SVR740740R0200 a genuine ABB product?
Yes. 1SVR740740R0200 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | 1SVR740740R0200 |
|---|---|
| Product Name | Filter products by CM-TCS.12P |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product type | Filter products by Temperature monitoring relay, temperature switch, thermal monitoring, thermal monitors, temperature monitoring |
| Product Series | Filter products by CM-TCS |
| GTIN / EAN | 4016779852784 |
| Range | Filter products by CM-TCS.12P – 24-240V AC/DC, measuring 0…+100 °C, sensor PT100 |
Electrical ratings
| Rated Control Supply Voltage | Filter products by 24 … 240 |
|---|---|
| Rated Frequency | Filter products by 50 / 60 Hz / DC |
| Pollution Degree | Filter products by 3 |
Power & coil
| Coil voltage (Uc) | Filter products by 24 … 240 V |
|---|---|
| Power Loss | Filter products by 2 W |
Sensing & measurement
| Measuring Range | Filter products by 0 … 100 |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP50 / IP20 |
|---|---|
| Ambient air temperature | Filter products by −40 … +60 / −40 … +85 °C |
Standards & certification
Documents
| Datasheet | Download datasheet |
|---|---|
| RoHS declaration | Download RoHS declaration |
| Declaration of conformity | Download declaration of conformity |
| Dimension drawings | Download dimension drawings |
| ABB product page | View on the ABB site |
| Deep Link | Printable product summary |
