About 1SVR730760R0400

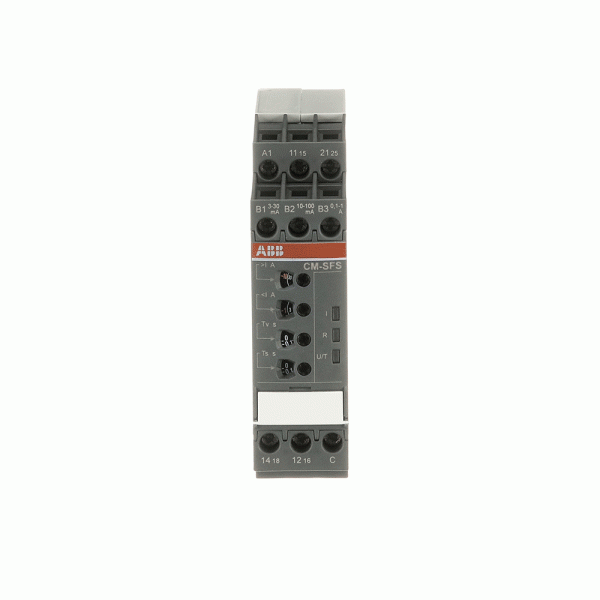

The CM-SFS.21S is a single-functional current monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 24 – 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC currents with 3 measuring ranges: 3-30 mA, 10-100 mA and 0.1-1 A. The CM-SFS.21S offers window (over- and undercurrent) monitoring as well as selection of ON- or OFF-delay, open- or closed-circuit operating principle, with or without latching function. The output contacts can be configured as 1×2 c/o (SPDT) (common signal) or 2×1 c/o (SPDT) (separate signal for minimum and maximum thresholds) operation. The hysteresis is fixed at 5 % of the threshold value. The tripping delay and the start-up delay are adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

1SVR730760R0400 key specifications

Key specifications: 24 … 240 V coil; IP50 / IP20; ambient −20 … +60 / −40 … +85 °C; measuring range 3 … 30|10 … 100|0.1 … 1; to CAN/CSA C22.2 No.14|IEC/EN 63000|IEC/EN 60255-27|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508.

Ordering information for 1SVR730760R0400

• Order code: 1SVR730760R0400
• Manufacturer: ABB
• Range: CM-SFS.21S – 24-240V AC/DC, measuring 3-30 mA, 10-100 mA and 0.1-1 A
• GTIN / EAN: 4016779852135
• Supplied: each
• Datasheet: manufacturer datasheet for 1SVR730760R0400

1SVR730760R0400 — frequently asked questions

What coil or control voltage does 1SVR730760R0400 use?

1SVR730760R0400 is supplied with a 24 … 240 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.

Where is the datasheet for 1SVR730760R0400?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SVR730760R0400 a genuine ABB product?

Yes. 1SVR730760R0400 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
