1SVR730021R2300 – CT-MVS.23S Time relay, multifunction | ABB

1SVR730021R2300 — CT-MVS.23S Time relay, multifunction from the ABB CT-MVS.23S – Multifunctional, 380-440V AC, 10 (0.05 s – 300 h), 2 c/o range. Listed under High-Performance Timers – CT-S on the ABB catalogue at RMS-ABB.Africa.

About 1SVR730021R2300

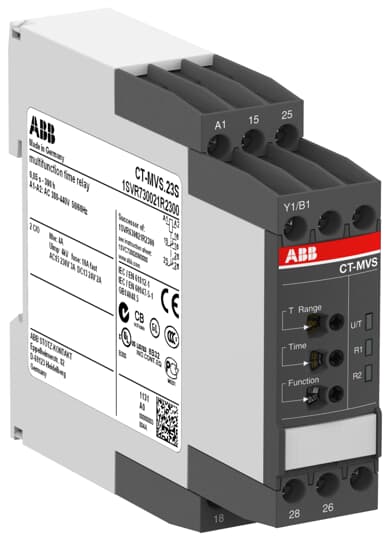

The CT-MVS.23S is a multifunction electronic time relay from the CT-S timer range. It provides 10 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 380 – 440 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

1SVR730021R2300 key specifications

Key specifications: rated current 4 A; rated voltage 440 V; measuring range 380-440V.

Ordering information for 1SVR730021R2300

• Order code: 1SVR730021R2300
• Manufacturer: ABB
• Range: CT-MVS.23S – Multifunctional, 380-440V AC, 10 (0.05 s – 300 h), 2 c/o
• Supplied: each
• Datasheet: manufacturer datasheet for 1SVR730021R2300

1SVR730021R2300 — frequently asked questions

What is the rated current of 1SVR730021R2300?

1SVR730021R2300 is rated 4 A.

Where is the datasheet for 1SVR730021R2300?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SVR730021R2300 a genuine ABB product?

Yes. 1SVR730021R2300 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
