Save 45%

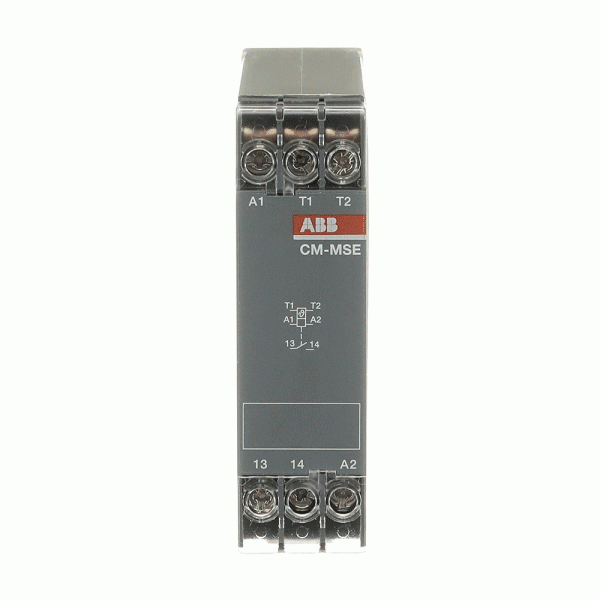

CM-MSE Thermistor motor protection relay, 220-240V AC
Key specifications
Rated voltage (Ue)Filter products by 240 V
Coil voltage (Uc)Filter products by 220 … 240 V
Degree of protection (IP)Filter products by IP50 / IP20
Product SeriesFilter products by CM-MSE

ABBMonitoring DevicesThermistor Motor Protection RelaysTimers and Control Relays

1SVR550801R9300 – CM-MSE Thermistor motor protection relay, 220-240V AC | ABB

Order code

List R1 177.87 Your price R647.83

Per unit · volume pricing available on request

excl. VAT R745.00 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

CM-MSE Thermistor motor protection relay, 220-240V AC — ABB order code 1SVR550801R9300. Rated voltage 240 V; 220 … 240 V coil; 50 / 60 Hz; IP50 / IP20.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)

Select a variant in this series

Coil voltage220 … 240 V3 options
Rated voltage240 V3 options

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 1SVR550801R9300 Categories: , , Tags: ,

Overview

1SVR550801R9300 — CM-MSE Thermistor motor protection relay, 220-240V AC from the ABB CM-MSE – 220-240V AC, sensor PTC type A range. Listed under Thermistor Motor Protection Relays on the ABB catalogue at RMS-ABB.Africa.

About 1SVR550801R9300

The CM-MSE relay is from the CM thermistor motor protection relay range. This relay operates with a rated control supply voltage of 220-240 V AC and has a 1 n/o output contact rated at 250 V / 4 A. It features one sensor circuit for monitoring of PTC temperature sensors or bimetals. This relay offers automatic reset and works according to the closed-circuit principle. A sealable transparent cover for protection against unauthorized changes is available as accessory.

1SVR550801R9300 key specifications

Key specifications: rated voltage 240 V; 220 … 240 V coil; 50 / 60 Hz; IP50 / IP20; ambient −20 … +60 / −40 … +85 °C; to CAN/CSA C22.2 No.14|IEC/EN 63000|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508.

Ordering information for 1SVR550801R9300

Ordering options in this range

Same product, different coil / control voltage:

  • 1SVR550800R9300 — 110 … 130 V
  • 1SVR550805R9300 — 24 V

1SVR550801R9300 — frequently asked questions

What coil or control voltage does 1SVR550801R9300 use?

1SVR550801R9300 is supplied with a 220 … 240 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.

Where is the datasheet for 1SVR550801R9300?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SVR550801R9300 a genuine ABB product?

Yes. 1SVR550801R9300 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code1SVR550801R9300
Product NameFilter products by CM-MSE
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by CM-MSE
GTIN / EAN4013614348785
RangeFilter products by CM-MSE – 220-240V AC, sensor PTC type A

Electrical ratings

Rated voltage (Ue)Filter products by 240 V
Rated Control Supply VoltageFilter products by 220 … 240
Rated FrequencyFilter products by 50 / 60 Hz

Power & coil

Coil voltage (Uc)Filter products by 220 … 240 V
Power LossFilter products by 2 W

Environment & protection

Degree of protection (IP)Filter products by IP50 / IP20
Ambient air temperatureFilter products by −20 … +60 / −40 … +85 °C

Standards & certification

Conformity to standardsFilter products by CAN/CSA C22.2 No.14, Filter products by IEC/EN 61000-6-2, Filter products by IEC/EN 61000-6-3, Filter products by IEC/EN 63000, Filter products by UL 508

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
Dimension drawingsDownload dimension drawings
ABB product pageView on the ABB site
Deep LinkPrintable product summary
360° viewOpen 360° view

More in the CM-MSE range

2 items

Same series, same mounting and the same documentation set.

Similar items

6 items

More in Monitoring Devices

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 1SVR550801R9300?

1SVR550801R9300 is the order code for CM-MSE Thermistor motor protection relay, 220-240V AC. It belongs to our Monitoring Devices range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

What voltage is 1SVR550801R9300 rated for?

ABB rates it for 240V.

What control voltage does 1SVR550801R9300 take?

ABB specifies a control voltage of 220 … 240 V.

What is the IP rating of 1SVR550801R9300?

ABB gives it a degree of protection of IP50 / IP20.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
