ABBAF 3-Pole ContactorsContactorsMotor Control and Drives
1SBL367001R1300 – AF52-30-00-13
Order code
- 35 A
- 35 A
Original price was: R3 146.67.R1 730.68Current price is: R1 730.68.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Buy 1SBL367001R1300 – AF52-30-00-13 ABB AF 3-Pole Contactors from ABB. Genuine ABB component for automation, motor control and electrical installations. AF52-30-00-13
Accessories & add-ons 8
- BER16-4KF, Connection sets1SBN081322R1000 Original price was: R403.50.R221.92Current price is: R221.92.Add
- AF750-30-11, 250-500V AC/DC coil1SFL637001R7111 Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.Add
- AF750-30-11, 100-250V AC/DC coil1SFL637001R7011 Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.Add
- AF750-30-11, 48-130V AC/DC coil1SFL637001R6911 Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.Add
- AF750-30-11, 24-60V DC coil1SFL637001R6811 Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.Add
- BEY16C-3 Connection sets1SBN081018R2000 Original price was: R331.50.R182.33Current price is: R182.33.Add
- BER16C-3 Connection sets1SBN081012R1000 Original price was: R253.37.R139.36Current price is: R139.36.Add
- BEA16-3 Connecting links1SBN081006T1000 Original price was: R129.73.R71.35Current price is: R71.35.Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
AF40…AF96 range – AC-3 52A, AC-1 100A, 100-250V AC/DC coil The AF52-30-00-13 is a 3 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 22 kW / 400 V AC (AC-3) or 40 hp / 480 V UL and switching power circuits up to 100 A (AC-1) or 80 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
1SBL367001R1300 – AF52-30-00-13 ABB AF 3-Pole Contactors is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution applications.
ABB products are widely used across commercial and industrial installations where reliability, safety, and long operational life are required.
Applications
- Industrial automation
- Motor control systems
- Power distribution infrastructure
- Commercial electrical installations
Browse Related Categories
AF 3-Pole Contactors | Motor Control and Drives | Contactors
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by 1SBL367001R1300 |
|---|---|
| Product Name | Filter products by AF52-30-00-13 |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product Series | Filter products by AF52 |
| International GTIN | Filter products by 3471523132337 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 35.0 A, Filter products by 45.0 A, Filter products by 53.0 A |
| Rated voltage (Ue) | Filter products by 690 V |
| Rated operational voltage | Filter products by 690 V |
| Operating Voltage | Filter products by 690 V |
| Rated Control Circuit Voltage | Filter products by 100 … 250 |
| Operating Current AC | Filter products by 35.0 A, Filter products by 45.0 A, Filter products by 53.0 A |
| Operating Current DC | Filter products by 100.0 A, Filter products by 70.0 A, Filter products by 80.0 A |
| General Use Rating UlC | Filter products by 80.0 |
| Rated Frequency | Filter products by 50 / 60 |
| Max Break Capacity | Filter products by 600.0 kA, Filter products by 950.0 kA |
| Pollution Degree | Filter products by 3.0 |
Power & coil
| Coil Consumption | Filter products by 2.0 VA, Filter products by 4.0 VA |
|---|---|
| Low Coil Consumption | Filter products by No |
| Con Fre Air The Cur | Filter products by 105 A |
| Power Loss | Filter products by 1.7 W, Filter products by 6.3 W |
Environment & protection
| Degree of protection (IP) | Filter products by IP20, Filter products by IP10 |
|---|---|
| Ambient air temperature | Filter products by -60 … +80, Filter products by '-40 … 70 |
Documents
| Datasheet | Download datasheet |
|---|---|
| RoHS declaration | Download RoHS declaration |
| Declaration of conformity | Download declaration of conformity |
| Dimension drawings | Download dimension drawings |
| ABB product page | View on the ABB site |
| Deep Link | Open deep link |
| 360° view | Open 360° view |
Accessories & add-ons
1SBN081322R1000BER16-4KF, Connection sets Original price was: R403.50.R221.92Current price is: R221.92.View product
1SFL637001R7111AF750-30-11, 250-500V AC/DC coil Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.View product- 1SFL637001R7011AF750-30-11, 100-250V AC/DC coil Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.View product
- 1SFL637001R6911AF750-30-11, 48-130V AC/DC coil Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.View product
- 1SFL637001R6811AF750-30-11, 24-60V DC coil Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.View product
1SBN081018R2000BEY16C-3 Connection sets Original price was: R331.50.R182.33Current price is: R182.33.View product
1SBN081012R1000BER16C-3 Connection sets Original price was: R253.37.R139.36Current price is: R139.36.View product
1SBN081006T1000BEA16-3 Connecting links Original price was: R129.73.R71.35Current price is: R71.35.View product
More in the AF52 range
Same series, same mounting and the same documentation set.
1SBL367001R1400AF52-30-00-14 Original price was: R3 146.67.R1 730.68Current price is: R1 730.68.View product- 1SBL367001R1200AF52-30-00-12 Original price was: R3 960.95.R2 178.53Current price is: R2 178.53.View product
- 1SBL367001R1100AF52-30-00-11 Original price was: R3 960.95.R2 178.53Current price is: R2 178.53.View product
Similar items
- 1SBL347001R1400AF40-30-00-14 Original price was: R2 979.92.R1 638.95Current price is: R1 638.95.View product
- 1SBL347001R1300AF40-30-00-13 Original price was: R2 979.92.R1 638.95Current price is: R1 638.95.View product
- 1SBL347001R1200AF40-30-00-12 Original price was: R3 793.30.R2 086.31Current price is: R2 086.31.View product
- 1SBL347001R1100AF40-30-00-11 Original price was: R3 793.30.R2 086.31Current price is: R2 086.31.View product
1SBL277001R1400AF30-30-00-14 Original price was: R2 282.23.R1 255.23Current price is: R1 255.23.View product
More in AF 3-Pole Contactors
1SFL527002R1400AF205-30-00-14 Original price was: R14 760.86.R8 118.47Current price is: R8 118.47.View product
1SFL487002R1400AF190-30-00-14 Original price was: R12 461.14.R6 853.62Current price is: R6 853.62.View product
1SFL707001R7011AF2050-30-11 Original price was: R193 058.63.R106 182.25Current price is: R106 182.25.View product

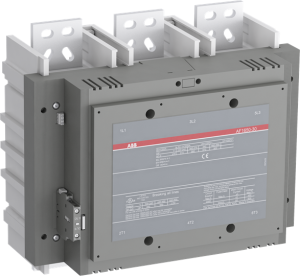

1SFL677001R7011AF1650-30-11 Original price was: R154 446.33.R84 945.48Current price is: R84 945.48.View product

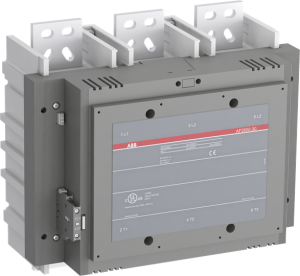

1SFL667001R7011AF2650-30-11 Original price was: R376 464.69.R207 055.58Current price is: R207 055.58.View product
