1SFL427001R1400 – AF116-30-00-14 | ABB

1SFL427001R1400 — AF116-30-00-14 from the ABB AF116…AF370 range – AC-3 116A, AC-1 160A, 250-500V AC/DC coil range. Listed under AF 3-Pole Contactors on the ABB catalogue at RMS-ABB.Africa.

About 1SFL427001R1400

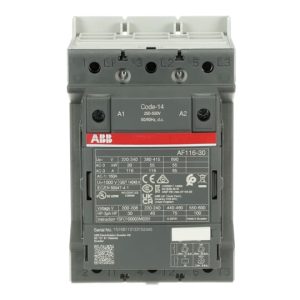

The AF116-30-00-14 is a 3 pole – 690 V IEC or 600 V UL contactor with double clamp, controlling motors up to 55 kW / 400 V AC (AC-3) or 75 hp / 480 V UL and switching power circuits up to 160 A (AC-1) or 160 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

1SFL427001R1400 key specifications

Key specifications: rated current 110 / 116 / 65 A; AC-3 rated current 116 / 110 / 65 A; AC-1 rated current 160 / 145 / 130 A; 3P; rated voltage 690 V; control voltage 250 … 500 V; 50 / 60 Hz; IP40 / IP20 / IP00.

Ordering information for 1SFL427001R1400

• Order code: 1SFL427001R1400
• Manufacturer: ABB
• Range: AF116…AF370 range – AC-3 116A, AC-1 160A, 250-500V AC/DC coil
• GTIN / EAN: 7320500476413
• Supplied: each
• Datasheet: manufacturer datasheet for 1SFL427001R1400

How to read the order code

• 1SFL427001R1400 — ABB order code for type AF116-30-00-14
• AF — ABB AF-range contactor
• 116 — AC-3 rating 116 A
• 30 — 3-pole main contacts
• -14 — coil code: 250 … 500 V

1SFL427001R1400 — frequently asked questions

What is the rated current of 1SFL427001R1400?

1SFL427001R1400 is rated 110 / 116 / 65 A.

What coil or control voltage does 1SFL427001R1400 use?

1SFL427001R1400 is supplied with a 250 … 500 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.

How many poles does 1SFL427001R1400 have?

1SFL427001R1400 is a 3P device.

Where is the datasheet for 1SFL427001R1400?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SFL427001R1400 a genuine ABB product?

Yes. 1SFL427001R1400 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
