1SAM350010R1015 — 1SAM350010R1015 - MS132-32K ABB Push-in Spring Motor Circuit Breakers

Key specifications

Rated current (Iu)
32 A
Rated voltage (Ue)
250 V  ·  690 V
Number of poles
3P
Rated Frequency
50 Hz  ·  60 Hz
Degree of protection (IP)
IP20
Product Series
MS132
ABB MS132 · Authorised distributor
Motor Control and DrivesMotor Protection Circuit Breakers

1SAM350010R1015 – MS132-32K ABB Push-in Spring Motor Circuit Breakers

Buy 1SAM350010R1015 – MS132-32K ABB Push-in Spring Motor Circuit Breakers from ABB. Genuine ABB component for automation, motor control and electrical installat MS132-32K
Order code 1SAM350010R1015

Your price

Original price was: R2259.89.Current price is: R1242.94.
Save 45%

Excluding VAT · per unit · volume pricing available on request

Request a quote
Product datasheet View on ABB.com
Genuine ABB product — supplied through authorised channels.
Fast delivery across South Africa & Africa (lead time confirmed on order).
Off-site stock — availability is confirmed after quote request or order placement.

Overview

MS132-32K – 25.0 -32.0 A, 25kA 400V The MS132-32K manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 32.0 A with Push-in spring terminals. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The MS132-K manual motor starter offers a rated service short-circuit breaking capacity Ics = 30 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The MS132-K manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips and terminal spacers are available as accessory.

1SAM350010R1015 – MS132-32K ABB Push-in Spring Motor Circuit Breakers is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution applications.

ABB products are widely used across commercial and industrial installations where reliability, safety, and long operational life are required.

Applications

  • Industrial automation
  • Motor control systems
  • Power distribution infrastructure
  • Commercial electrical installations

Browse Related Categories

Motor Control and Drives | Motor Protection Circuit Breakers

Technical specifications

Data supplied by ABB. Please confirm against the official datasheet before ordering.

Ordering & identification

Order code
1SAM350010R1015
Product Name
MS132-32K
Product Series
MS132
Brand
ABB  ·  ABB Group  ·  ABB Limited
International GTIN
4013614400452.0

Electrical ratings & operation

Rated current (Iu)
32 A
Rated voltage (Ue)
250 V  ·  690 V
Rated Frequency
50 Hz  ·  60 Hz
Rated operational voltage
250 V  ·  690 V
Operating Voltage
250 V  ·  690 V
Operating Current AC
32 A
General Use Rating UlC
32.0
Number of poles
3P
Degree of protection (IP)
IP20
Pollution Degree
3.0

Power & coil characteristics

Power Loss
1.9 … 3.1
Con Fre Air The Cur
32 A

Environment

Ambient air temperature
-25 … +70  ·  -50 … +80  ·  '-25 … +60  ·  0 … +40

Documents & media

Datasheet
Download datasheet
RoHS declaration
Download RoHS declaration
Declaration of conformity
Download declaration of conformity
Instructions for Use
Download instructions
Dimensions Drawings
Download dimension drawings
Product Video
Watch product video
ABB product page
View on ABB.com
Deep Link
Open deep link
360° view
Open 360° view

Documents & downloads

Official ABB documentation for this order code.

Technical datasheetPDF · ABB Library RoHS declarationPDF · Compliance Declaration of conformityPDF · Compliance Dimension drawingsPDF · Engineering Instructions for usePDF · Manual Product videoVideo View on ABB.comManufacturer page 360° product viewInteractive

Ordering & delivery

How to order

Contact us for bulk pricing, lead times and ordering codes. Add the item to your cart to order online, or request a quotation if you need a formal quote document, project pricing or a written lead time.

Stock & lead time

Some items are held off-site rather than in our Johannesburg warehouse. Where that is the case, availability is confirmed once a quote is requested or an order is placed, and the lead time is confirmed in writing on your quotation.

Delivery

Nationwide delivery across South Africa, export delivery to the rest of Africa on request, and collection available from our Johannesburg branch.

Accessories & add-ons

Compatible accessories from the same ABB range.

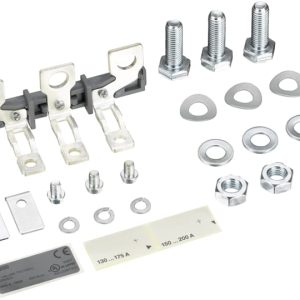

1SAX101110R0001 - DB16E ABB Electronic Overload Accessories Buy 1SAX101110R0001 - DB16E ABB Electronic Overload Accessories from ABB. Genuine ABB component for automation, motor control and electrical installations. DB16E Electronic Overload Accessories 1SAX101110R0001 – DB16E ABB Electronic Overload Accessories 1SAX101110R0001 Original price was: R419.82.Current price is: R230.91. 1SAX201910R0001 - DB45EF ABB Electronic Overload Accessories Buy 1SAX201910R0001 - DB45EF ABB Electronic Overload Accessories from ABB. Genuine ABB component for automation, motor control and electrical installations. DB45EF Electronic Overload Accessories 1SAX201910R0001 – DB45EF ABB Electronic Overload Accessories 1SAX201910R0001 Original price was: R633.50.Current price is: R348.43. 1SAZ401110R0001 - DB200 ABB Electronic Overload Accessories Buy 1SAZ401110R0001 - DB200 ABB Electronic Overload Accessories from ABB. Genuine ABB component for automation, motor control and electrical installations. DB200 Electronic Overload Accessories 1SAZ401110R0001 – DB200 ABB Electronic Overload Accessories 1SAZ401110R0001 Original price was: R774.50.Current price is: R425.98. 1SAZ701901R0001 - DB16 ABB Electronic Overload Accessories Buy 1SAZ701901R0001 - DB16 ABB Electronic Overload Accessories from ABB. Genuine ABB component for automation, motor control and electrical installations. DB16 Electronic Overload Accessories 1SAZ701901R0001 – DB16 ABB Electronic Overload Accessories 1SAZ701901R0001 Original price was: R338.00.Current price is: R185.90.
