Key specifications
Rated current (Iu)	Filter products by 12 / 3.5 / 9 A
Rated current AC-1 (Ie)	Filter products by 20 / 16 / 6 A
Rated current AC-3 (Ie)	Filter products by 12 / 9 / 3.5 A
Rated voltage (Ue)	Filter products by 220 / 250 / 690 V
Number of poles	Filter products by 3P
Degree of protection (IP)	Filter products by IP20
Product Series	Filter products by BC7

ABB BC7 3-Pole Contactors Contactors Motor Control and Drives

GJL1313001R0107 – BC7-30-10-07 | ABB

Name: BC7-30-10-07
Brand: ABB
SKU: GJL1313001R0107
Price: 299.43 ZAR
Availability: InStock

Order code

List R544.41 Your price R299.43

Per unit · volume pricing available on request

excl. VAT R344.34 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

BC7-30-10-07 — ABB order code GJL1313001R0107. Rated current 12 / 3.5 / 9 A; AC-3 rated current 12 / 9 / 3.5 A; AC-1 rated current 20 / 16 / 6 A; 3P.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)

Select a variant in this series

Control voltage12 V6 options

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

Ordering & delivery

Contact us for bulk pricing, lead times and ordering codes.
Minimum order: 1 unit.
Manufacturer's standard warranty applies.
Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.

Authorised ABB distributor
Genuine product with manufacturer warranty
Formal quotations with written lead times

Overview

GJL1313001R0107 — BC7-30-10-07 from the ABB BC7 range – AC-3 11.5A, 1N0 aux, 12V DC coil range. Listed under BC7 3-Pole Contactors on the ABB catalogue at RMS-ABB.Africa.

About GJL1313001R0107

The BC7-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.

GJL1313001R0107 key specifications

Key specifications: rated current 12 / 3.5 / 9 A; AC-3 rated current 12 / 9 / 3.5 A; AC-1 rated current 20 / 16 / 6 A; 3P; rated voltage 220 / 250 / 690 V; rated operational voltage 690 / 250 / 220 V; control voltage 12 V; 50 / 60 Hz / DC.

Ordering information for GJL1313001R0107

Order code: GJL1313001R0107
Manufacturer: ABB
Range: BC7 range – AC-3 11.5A, 1N0 aux, 12V DC coil
GTIN / EAN: 4013614189098
Supplied: each
Datasheet: manufacturer datasheet for GJL1313001R0107

GJL1313001R0107 — frequently asked questions

What is the rated current of GJL1313001R0107?

GJL1313001R0107 is rated 12 / 3.5 / 9 A.

What coil or control voltage does GJL1313001R0107 use?

GJL1313001R0107 is supplied with a 12 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.

How many poles does GJL1313001R0107 have?

GJL1313001R0107 is a 3P device.

Where is the datasheet for GJL1313001R0107?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is GJL1313001R0107 a genuine ABB product?

Yes. GJL1313001R0107 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code	GJL1313001R0107
Product Name	Filter products by BC7-30-10-07
Brand	Filter products by ABB, ABB Group, ABB Limited
Product Series	Filter products by BC7
GTIN / EAN	4013614189098
Range	Filter products by BC7 range – AC-3 11.5A, 1N0 aux, 12V DC coil

Electrical ratings

Number of poles	Filter products by 3P
Rated current (Iu)	Filter products by 12 / 3.5 / 9 A
Rated current AC-1 (Ie)	Filter products by 20 / 16 / 6 A
Rated current AC-3 (Ie)	Filter products by 12 / 9 / 3.5 A
Rated voltage (Ue)	Filter products by 220 / 250 / 690 V
Rated operational voltage	Filter products by 690 / 250 / 220 V
Control circuit voltage (Us)	Filter products by 12 V
Operating Current AC	Filter products by 12.0 A, Filter products by 3.5 A, Filter products by 9.0 A
General Use Rating UlC	Filter products by 16.0
Rated Frequency	Filter products by 50 / 60 Hz / DC

Power & coil

Coil Consumption	Filter products by 3.5 VA
Low Coil Consumption	Filter products by No
Coil Operating limits	Filter products by 0.85 … 1.1 x Uc (at θ ≤ 55 °C)
Con Fre Air The Cur	Filter products by 20 A
Power Loss	Filter products by 1.4 W

Environment & protection

Degree of protection (IP)	Filter products by IP20
Ambient air temperature	Filter products by −25 … +55 / −40 … +80 °C

Standards & certification

Conformity to standards	Filter products by IEC 60335-2-40 A2L, Filter products by IEC/EN 60947-1, Filter products by IEC/EN 60947-4-1, Filter products by IEC/EN 60947-5-1, Filter products by UL 60947-1, Filter products by UL 60947-4-1

Documents

Datasheet	Download datasheet
RoHS declaration	Download RoHS declaration
Declaration of conformity	Download declaration of conformity
Dimension drawings	Download dimension drawings
ABB product page	View on the ABB site
Deep Link	Printable product summary
360° view	Open 360° view

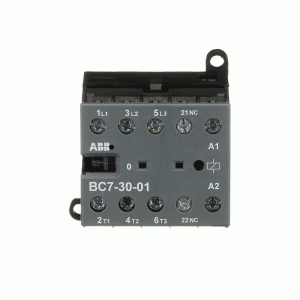

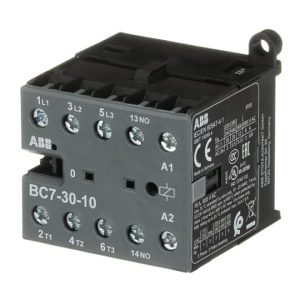

More in the BC7 range

Same series, same mounting and the same documentation set.

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Category browseBrowse comparable BC7 3-Pole Contactors at RMS-SE.Africa (opens in a new tab)
A category listing, not a confirmed equivalent. Ask us to confirm a match before ordering.
Category browseBrowse comparable BC7 3-Pole Contactors at RMS-EM.Africa (opens in a new tab)
A category listing, not a confirmed equivalent. Ask us to confirm a match before ordering.

Quick answers

What is GJL1313001R0107?

GJL1313001R0107 is the order code for BC7-30-10-07. It belongs to our BC7 3-Pole Contactors range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

What is the rated current of GJL1313001R0107?

ABB rates BC7-30-10-07 at 20 / 16 / 6 A. It is a 3P-pole device.

What voltage is GJL1313001R0107 rated for?

ABB rates it for 220, 250, 690.

What is the IP rating of GJL1313001R0107?

ABB gives it a degree of protection of IP20.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
