ABBContactorsMotor Control and Drives
GJL1311901R8014 – VB7-30-01-84 | ABB
Order code
List R1 069.86 Your price R588.42
Per unit · volume pricing available on request
excl. VAT R676.68 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
VB7-30-01-84 — ABB order code GJL1311901R8014. Rated current 12 / 3.5 / 9 A; AC-3 rated current 12 / 9 / 3.5 A; AC-1 rated current 20 / 16 / 6 A; 3P.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)
Select a variant in this series
Control voltage110 … 127 V6 options
- 24 V
- 42 V
- 48 V
- 110 … 127 V
- 220 … 240 V
- 380 … 415 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
GJL1311901R8014 — VB7-30-01-84 from the ABB VB7 range – AC-3 11.5A, 1NC aux, 110-127V AC coil range. Listed under Motor Control and Drives on the ABB catalogue at RMS-ABB.Africa.
About GJL1311901R8014

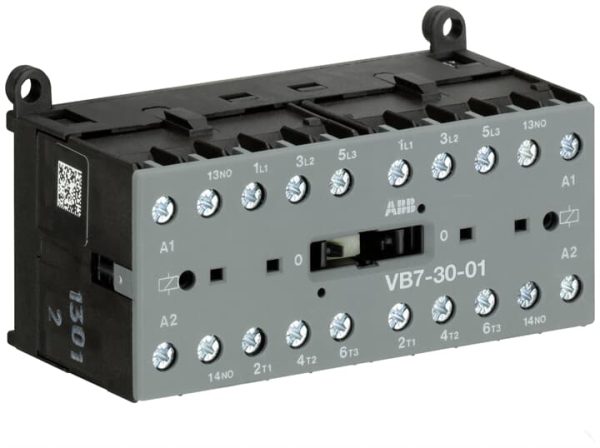

The VB7-30-01 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 5.5 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
GJL1311901R8014 key specifications
Key specifications: rated current 12 / 3.5 / 9 A; AC-3 rated current 12 / 9 / 3.5 A; AC-1 rated current 20 / 16 / 6 A; 3P; rated voltage 220 / 250 / 690 V; rated operational voltage 690 / 250 / 220 V; control voltage 110 … 127 V; 60 / 50 Hz / DC.
Ordering information for GJL1311901R8014
- Order code:
GJL1311901R8014 - Manufacturer: ABB
- Range: VB7 range – AC-3 11.5A, 1NC aux, 110-127V AC coil
- GTIN / EAN: 4013614155000
- Supplied: each
- Datasheet: manufacturer datasheet for GJL1311901R8014
GJL1311901R8014 — frequently asked questions
What is the rated current of GJL1311901R8014?
GJL1311901R8014 is rated 12 / 3.5 / 9 A.
What coil or control voltage does GJL1311901R8014 use?
GJL1311901R8014 is supplied with a 110 … 127 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
How many poles does GJL1311901R8014 have?
GJL1311901R8014 is a 3P device.
Where is the datasheet for GJL1311901R8014?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.
Is GJL1311901R8014 a genuine ABB product?
Yes. GJL1311901R8014 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
- Download datasheet (opens in a new tab)
- Open 360° view (opens in a new tab)
- View on the ABB site (opens in a new tab)
- Printable product summary (opens in a new tab)
- Download dimension drawings (opens in a new tab)
- Download RoHS declaration (opens in a new tab)
- Download declaration of conformity (opens in a new tab)
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | GJL1311901R8014 |
|---|---|
| Product Name | Filter products by VB7-30-01-84 |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product Series | Filter products by VB7 |
| GTIN / EAN | 4013614155000 |
| Range | Filter products by VB7 range – AC-3 11.5A, 1NC aux, 110-127V AC coil |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 12 / 3.5 / 9 A |
| Rated current AC-1 (Ie) | Filter products by 20 / 16 / 6 A |
| Rated current AC-3 (Ie) | Filter products by 12 / 9 / 3.5 A |
| Rated voltage (Ue) | Filter products by 220 / 250 / 690 V |
| Rated operational voltage | Filter products by 690 / 250 / 220 V |
| Control circuit voltage (Us) | Filter products by 110 … 127 V |
| Operating Current AC | Filter products by 12.0 A, Filter products by 3.5 A, Filter products by 9.0 A |
| General Use Rating UlC | Filter products by 16.0 |
| Rated Frequency | Filter products by 60 / 50 Hz / DC |
| Pollution Degree | Filter products by 3 |
Power & coil
| Coil Consumption | Filter products by 3.5 VA |
|---|---|
| Low Coil Consumption | Filter products by No |
| Coil Operating limits | Filter products by 0.85 … 1.1 x Uc (at θ ≤ 55 °C) |
| Con Fre Air The Cur | Filter products by 20 A |
| Power Loss | Filter products by 1.4 W |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|---|
| Ambient air temperature | Filter products by −20 … +55 / −40 … +80 °C |
Standards & certification
Documents
| Datasheet | Download datasheet |
|---|---|
| RoHS declaration | Download RoHS declaration |
| Declaration of conformity | Download declaration of conformity |
| Dimension drawings | Download dimension drawings |
| ABB product page | View on the ABB site |
| Deep Link | Printable product summary |
| 360° view | Open 360° view |
