Save 45%

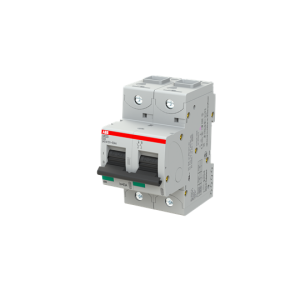

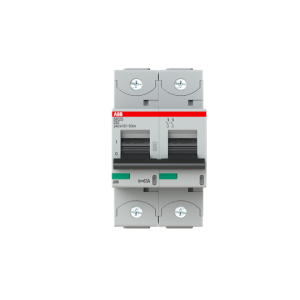

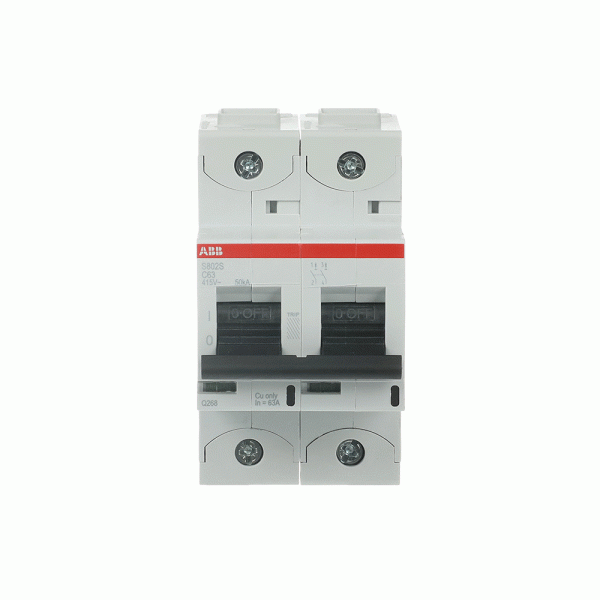

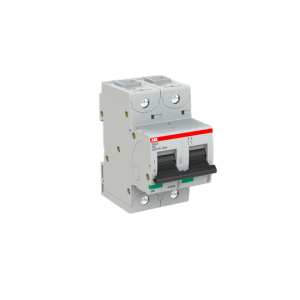

S802S-C63
Key specifications
Rated current (Iu)Filter products by 63 A
Rated voltage (Ue)Filter products by 230 / 400 / 12 V
Number of polesFilter products by 2P
Max Break CapacityFilter products by 50 kA
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by S800S

ABBHigh Perfomance MCB – S800S 50kAMiniature Circuit Breakers (MCB's)Power Distribution & Protection

2CCS862001R0634 – S802S-C63 | ABB

Order code

List R4 550.77 Your price R2 502.92

Per unit · volume pricing available on request

excl. VAT R2 878.36 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

S802S-C63 — ABB order code 2CCS862001R0634. Rated current 63 A; 2P; breaking capacity 50 kA; rated voltage 230 / 400 / 12 V.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)View on the ABB site (opens in a new tab)Printable product summary (opens in a new tab)

Select a variant in this series

Rating63 A11 options
Poles2P4 options
Rated voltage230 / 400 / 12 V5 options

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 2CCS862001R0634 Categories: , , Tags: ,

Overview

2CCS862001R0634 — S802S-C63 from the ABB 2P 63A C – Curve 50kA range. Listed under High Perfomance MCB – S800S 50kA on the ABB catalogue at RMS-ABB.Africa.

About 2CCS862001R0634

The S802S-C63 is a 2-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802S-C63 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802S-C63 more comfortable. Due to the fast arc extinction of S802S-C63 your application will be secured.

2CCS862001R0634 key specifications

Key specifications: rated current 63 A; 2P; breaking capacity 50 kA; rated voltage 230 / 400 / 12 V; rated operational voltage 400 / 690 V; 50 / 60 Hz; IP20; ambient −40 … +70 °C.

Ordering information for 2CCS862001R0634

2CCS862001R0634 — frequently asked questions

What is the rated current of 2CCS862001R0634?

2CCS862001R0634 is rated 63 A.

How many poles does 2CCS862001R0634 have?

2CCS862001R0634 is a 2P device.

What is the breaking capacity of 2CCS862001R0634?

The catalogue states 50 kA for 2CCS862001R0634. Check the datasheet for the value at your system voltage.

Where is the datasheet for 2CCS862001R0634?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 2CCS862001R0634 a genuine ABB product?

Yes. 2CCS862001R0634 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code2CCS862001R0634
Product NameFilter products by S802S-C63
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by S800S
GTIN / EAN7612271200688
RangeFilter products by 2P 63A C – Curve 50kA

Electrical ratings

Number of polesFilter products by 2P
Rated current (Iu)Filter products by 63 A
Rated voltage (Ue)Filter products by 230 / 400 / 12 V
Rated operational voltageFilter products by 400 / 690 V
Rated FrequencyFilter products by 50 / 60 Hz
Max Break CapacityFilter products by 50 kA
Pollution DegreeFilter products by 3

Power & coil

Power LossFilter products by 12.8 W, Filter products by 6.4 W

Environment & protection

Degree of protection (IP)Filter products by IP20
Ambient air temperatureFilter products by −40 … +70 °C

Standards & certification

Conformity to standardsFilter products by IEC/EN 60898-1, Filter products by IEC/EN 60947-2, Filter products by UL 1077

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
ABB product pageView on the ABB site
Deep LinkPrintable product summary

Higher-rated in this range

6 items

Same series, a larger rating — where the duty is heavier than this part covers.

More in the S800S range

8 items

Same series, same mounting and the same documentation set.

Similar items

8 items

More in High Perfomance MCB – S800S 50kA

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 2CCS862001R0634?

2CCS862001R0634 is the order code for S802S-C63. It belongs to our High Perfomance MCB – S800S 50kA range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

What is the rated current of 2CCS862001R0634?

ABB rates S802S-C63 at 63 A. It is a 2P-pole device.

What is the breaking capacity of 2CCS862001R0634?

ABB specifies a breaking capacity of 50 kA. A breaking capacity holds at a stated voltage; check the datasheet for the value at your system voltage.

What voltage is 2CCS862001R0634 rated for?

ABB rates it for Maximum 230/400, Minimum 12.

What is the IP rating of 2CCS862001R0634?

ABB gives it a degree of protection of IP20.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
