1SVR740830R0400 – CM-ESS.2P Voltage monitoring relay, 24-240V AC/DC | ABB

1SVR740830R0400 — CM-ESS.2P Voltage monitoring relay, 24-240V AC/DC from the ABB CM-ESS.2P – 24-240V AC/DC, measuring 3-30V, 6-60V, 30-300V and 60-600V, 2 c/o range. Listed under Voltage Monitoring Relays on the ABB catalogue at RMS-ABB.Africa.

About 1SVR740830R0400

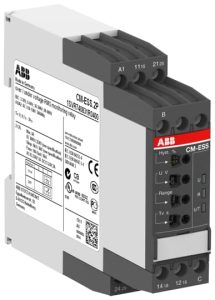

The CM-ESS.2P is a single-functional voltage monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 24 – 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC voltages with 4 measuring ranges: 3-30 V, 6-60 V, 30-300 V and 60-600 V and works according to the open-circuit principle. The CM-ESS.2P is configurable for over- or undervoltage monitoring. The hysteresis is adjustable within a range of 3 to 30 % of the threshold value and the tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.

1SVR740830R0400 key specifications

Key specifications: 2P; rated voltage 240 V; 24 … 240 V coil; IP50 / IP20; ambient −20 … +60 / −40 … +85 °C; measuring range 3 … 30|6 … 60|30 … 300|60 … 600; to CAN/CSA C22.2 No.14|IEC/EN 63000|IEC/EN 60255-27|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508.

Ordering information for 1SVR740830R0400

• Order code: 1SVR740830R0400
• Manufacturer: ABB
• Range: CM-ESS.2P – 24-240V AC/DC, measuring 3-30V, 6-60V, 30-300V and 60-600V, 2 c/o
• GTIN / EAN: 4016779852401
• Supplied: each
• Datasheet: manufacturer datasheet for 1SVR740830R0400

Ordering options in this range

Same product, different coil / control voltage:

• 1SVR740831R0400 — 110 … 130 V
• 1SVR740831R1400 — 220 … 240 V

1SVR740830R0400 — frequently asked questions

What coil or control voltage does 1SVR740830R0400 use?

1SVR740830R0400 is supplied with a 24 … 240 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.

How many poles does 1SVR740830R0400 have?

1SVR740830R0400 is a 2P device.

Where is the datasheet for 1SVR740830R0400?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SVR740830R0400 a genuine ABB product?

Yes. 1SVR740830R0400 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
