1SVR405622R2100 – CR-U120AC3L Pluggable interface relay | ABB

1SVR405622R2100 — CR-U120AC3L Pluggable interface relay from the ABB CR-U120AC3L – 120V AC, 3 c/o (SPDT), 250V, 10A range. Listed under Pluggable Interface Relays with LED on the ABB catalogue at RMS-ABB.Africa.

About 1SVR405622R2100

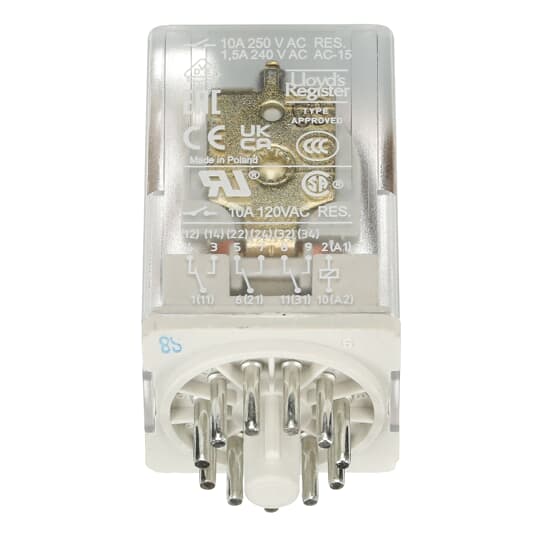

The CR-U120AC3L pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 120 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.

1SVR405622R2100 key specifications

Key specifications: 3P; rated voltage 250 V; 120 V coil; 50 / 60 Hz; IP40; ambient −40 … +55 / −40 … +85 °C; to CAN/CSA C22.2 No.14|IEC/EN 63000|IEC/EN 61810-1|UL 508.

Ordering information for 1SVR405622R2100

• Order code: 1SVR405622R2100
• Manufacturer: ABB
• Range: CR-U120AC3L – 120V AC, 3 c/o (SPDT), 250V, 10A
• GTIN / EAN: 4013614498602
• Supplied: each
• Datasheet: manufacturer datasheet for 1SVR405622R2100

1SVR405622R2100 — frequently asked questions

What coil or control voltage does 1SVR405622R2100 use?

1SVR405622R2100 is supplied with a 120 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.

How many poles does 1SVR405622R2100 have?

1SVR405622R2100 is a 3P device.

Where is the datasheet for 1SVR405622R2100?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SVR405622R2100 a genuine ABB product?

Yes. 1SVR405622R2100 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
