ABBHigh-efficiemcy Power Supplies – CP-S.1Power Distribution & Protection
1SVR320561R1000 – CP-S.1 24/5.0 Power supply | ABB
Order code
List R3 137.84 Your price R1 725.81
Per unit · volume pricing available on request
excl. VAT R1 984.68 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
CP-S.1 24/5.0 Power supply — ABB order code 1SVR320561R1000. Rated current 5 A; rated voltage 240 V; measuring range 100-240 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the ABB site (opens in a new tab)Download datasheet (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
1SVR320561R1000 — CP-S.1 24/5.0 Power supply from the ABB CP-S.1 24/5.0 – Input voltage 100-240 V AC/ 100-250 V DC, Output 24V DC / 5A range. Listed under High-efficiemcy Power Supplies – CP-S.1 on the ABB catalogue at RMS-ABB.Africa.
About 1SVR320561R1000
The CP-S.1 24/5.0 is a power supply from the new generation CP-S.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-277 V DC, rated input voltage is 100-240 V AC, respectively 100-250 V DC. The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
1SVR320561R1000 key specifications
Key specifications: rated current 5 A; rated voltage 240 V; measuring range 100-240 V.
Ordering information for 1SVR320561R1000
- Order code:
1SVR320561R1000 - Manufacturer: ABB
- Range: CP-S.1 24/5.0 – Input voltage 100-240 V AC/ 100-250 V DC, Output 24V DC / 5A
- Supplied: each
- Datasheet: manufacturer datasheet for 1SVR320561R1000
1SVR320561R1000 — frequently asked questions
What is the rated current of 1SVR320561R1000?
1SVR320561R1000 is rated 5 A.
Where is the datasheet for 1SVR320561R1000?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.
Is 1SVR320561R1000 a genuine ABB product?
Yes. 1SVR320561R1000 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated current (Iu) | Filter products by 5 A |
|---|---|
| Rated voltage (Ue) | Filter products by 240 V |
Sensing & measurement
| Measuring Range | Filter products by 100-240 V |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| ABB product page | View on the ABB site |

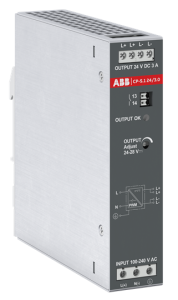

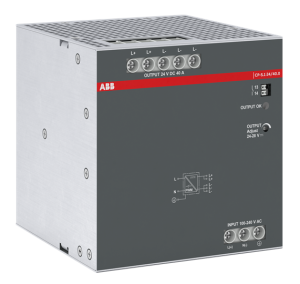

Higher-rated in this range
3 itemsSame series, a larger rating — where the duty is heavier than this part covers.
Higher-rated in this range
3 items
More in the CP-S.1 range
1 itemsSame series, same mounting and the same documentation set.
More in the CP-S.1 range
1 items
More in High-efficiemcy Power Supplies – CP-S.1
1 items
More in High-efficiemcy Power Supplies – CP-S.1
1 items
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is 1SVR320561R1000?
1SVR320561R1000 is the order code for CP-S.1 24/5.0 Power supply. It belongs to our High-efficiemcy Power Supplies – CP-S.1 range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.
What is the rated current of 1SVR320561R1000?
ABB rates CP-S.1 24/5.0 Power supply at 5 A.
What voltage is 1SVR320561R1000 rated for?
ABB rates it for 240 V.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
