Save 45%

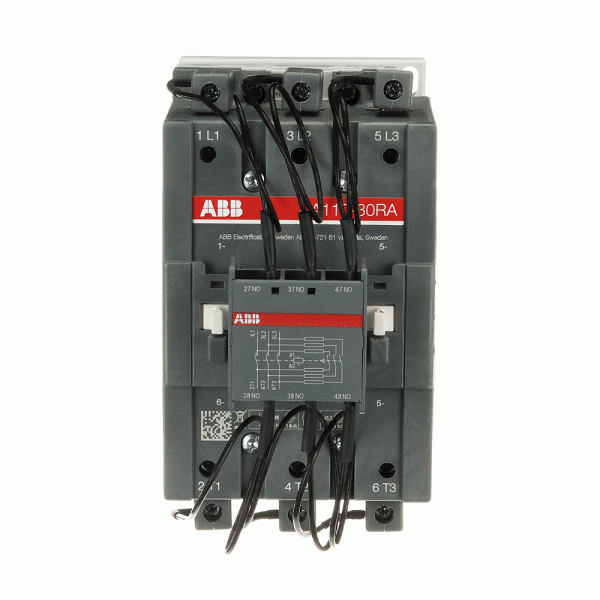

UA110-30-00RA , 110V AC coil
Key specifications
Rated current (Iu)Filter products by 100 / 110 / 30 / 82 A
Rated current AC-1 (Ie)Filter products by 160 / 145 / 130 A
Rated current AC-3 (Ie)Filter products by 110 / 100 / 82 / 30 A
Rated voltage (Ue)Filter products by 1000 V
Number of polesFilter products by 3P
Max Break CapacityFilter products by 1160.0 kA, Filter products by 800.0 kA
Degree of protection (IP)Filter products by IP20 / IP10
Product SeriesFilter products by UA110

ABBContactorsMotor Control and Drives

1SFL451024R8400 – UA110-30-00RA , 110V AC coil | ABB

Order code

Select a variant in this series

Control voltage

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

List R9 022.80 Your price R4 962.54

Excluding VAT · per unit · volume pricing available on request

Listed in stock — availability is re-confirmed on every order

UA110-30-00RA , 110V AC coil — ABB order code 1SFL451024R8400. Rated current 100 / 110 / 30 / 82 A; AC-3 rated current 110 / 100 / 82 / 30 A; AC-1 rated current 160 / 145 / 130 A; 3P.

Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)

Accessories & add-ons 8
Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 1SFL451024R8400 Categories: , Tags: ,

Overview

1SFL451024R8400 — UA110-30-00RA , 110V AC coil from the ABB UA110 range – 80kvar 400V, 110V AC coil range. Listed under Motor Control and Drives on the ABB catalogue at RMS-ABB.Africa.

About 1SFL451024R8400

A 3-phase Contactor suitable for Capacitor switching application. Maximum permissible peak current 100 times the nominal RMS current. Operated with a control voltage, versions from 24…690 V.

1SFL451024R8400 key specifications

Key specifications: rated current 100 / 110 / 30 / 82 A; AC-3 rated current 110 / 100 / 82 / 30 A; AC-1 rated current 160 / 145 / 130 A; 3P; rated voltage 1000 V; control voltage 110 / 110 … 120 V; 50 Hz; IP20 / IP10.

Ordering information for 1SFL451024R8400

1SFL451024R8400 — frequently asked questions

What is the rated current of 1SFL451024R8400?

1SFL451024R8400 is rated 100 / 110 / 30 / 82 A.

What coil or control voltage does 1SFL451024R8400 use?

1SFL451024R8400 is supplied with a 110 / 110 … 120 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.

How many poles does 1SFL451024R8400 have?

1SFL451024R8400 is a 3P device.

Where is the datasheet for 1SFL451024R8400?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SFL451024R8400 a genuine ABB product?

Yes. 1SFL451024R8400 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order codeFilter products by 1SFL451024R8400
Product NameFilter products by UA110-30-00RA-84
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by UA110
GTIN / EANFilter products by 7320500260555
RangeFilter products by UA110 range – 80kvar 400V, 110V AC coil

Electrical ratings

Number of polesFilter products by 3P
Rated current (Iu)Filter products by 100 / 110 / 30 / 82 A
Rated current AC-1 (Ie)Filter products by 160 / 145 / 130 A
Rated current AC-3 (Ie)Filter products by 110 / 100 / 82 / 30 A
Rated voltage (Ue)Filter products by 1000 V
Control circuit voltage (Us)Filter products by 110 / 110 … 120 V
Operating Current ACFilter products by 100.0 A, Filter products by 110.0 A, Filter products by 30.0 A, Filter products by 82.0 A
Rated FrequencyFilter products by 50 Hz
Max Break CapacityFilter products by 1160.0 kA, Filter products by 800.0 kA

Power & coil

Coil ConsumptionFilter products by 22.0 VA, Filter products by 26.0 VA, Filter products by 350.0 VA, Filter products by 450.0 VA
Coil Operating limitsFilter products by 0.85 x Uc Min. … 1.1 x Uc Max. (at θ ≤ 70 °C)
Con Fre Air The CurFilter products by 160 A
Power LossFilter products by 7.5 W

Environment & protection

Degree of protection (IP)Filter products by IP20 / IP10
Ambient air temperatureFilter products by −25 … +50 / −40 … +70 / −60 … +80 °C

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Instructions for useDownload instructions
Dimension drawingsDownload dimension drawings
ABB product pageView on the ABB site
Deep LinkPrintable product summary
360° viewOpen 360° view
