1SFA898114R7000 – PSTX300-600-70 | ABB

1SFA898114R7000 — PSTX300-600-70 from the ABB PSTX300 range – 160kW 400V, 300A, Us 100-250V AC, Ue 208-600V AC range. Listed under Motor Control and Drives on the ABB catalogue at RMS-ABB.Africa.

About 1SFA898114R7000

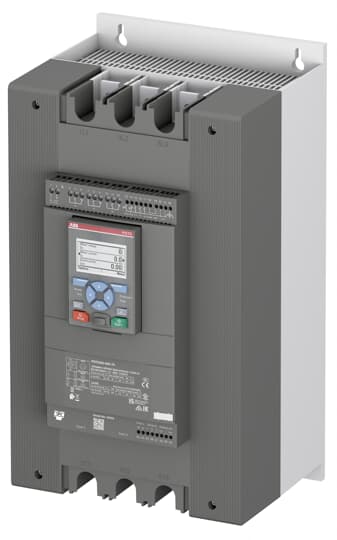

The softstarter PSTX300-600-70 has a rated maximum operational current of 300 A with an operating voltage span from 208…600 V AC. The rated control voltage is between 100…250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. PSTX also features features jog, braking, stand-still brake, diagnostics, sequence start and emergency/fire pump mode as standard.To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RTU and incl optional ANYBUS modules with every major protocol such as for example Profinet, Profibus, Modbus TCP, Ethernet IP and others. Another way to communicate with PSTX is to use an external adaptor and a Fieldbus plug. PSTX is the complete alternative for any motor starting application.

1SFA898114R7000 key specifications

Key specifications: rated current 300 A; rated voltage 400 V; 50 / 60 Hz; IP66; measuring range 100-250V.

Ordering information for 1SFA898114R7000

• Order code: 1SFA898114R7000
• Manufacturer: ABB
• Range: PSTX300 range – 160kW 400V, 300A, Us 100-250V AC, Ue 208-600V AC
• Supplied: each
• Datasheet: manufacturer datasheet for 1SFA898114R7000

1SFA898114R7000 — frequently asked questions

What is the rated current of 1SFA898114R7000?

1SFA898114R7000 is rated 300 A.

Where is the datasheet for 1SFA898114R7000?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SFA898114R7000 a genuine ABB product?

Yes. 1SFA898114R7000 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
