Save 45%
VEM4
Key specifications
Number of polesFilter products by 2P
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by Accessories for Block Contactors

ABBAF Contactor AccessoriesContactorsMotor Control and Drives

1SBN030111R1000 – VEM4 | ABB

Order code

List R410.89 Your price R225.99

Per unit · volume pricing available on request

excl. VAT R259.89 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

VEM4 — ABB order code 1SBN030111R1000. 2P; IP20; to IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)

Select a variant in this series

Poles2P3 options
Rated voltageChoose2 options

Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 1SBN030111R1000 Categories: , , Tags: ,

Overview

1SBN030111R1000 — VEM4 from the ABB VEM4 – Mechanical interlock for AF09 … AF38 range. Listed under AF Contactor Accessories on the ABB catalogue at RMS-ABB.Africa.

About 1SBN030111R1000

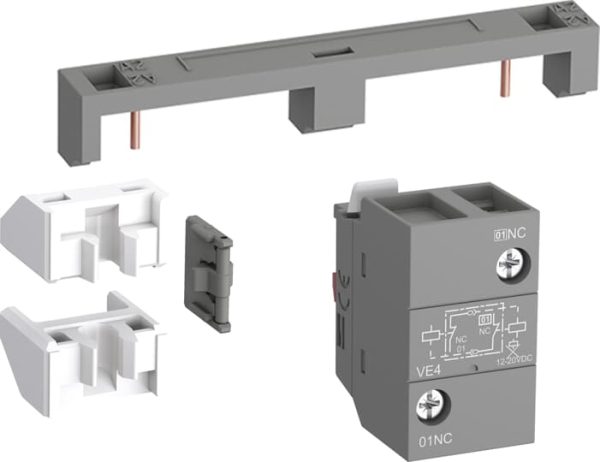

VEM4 is a mechanical and electrical interlock set for the interlocking side-by-side without additional width of two AF09 … AF38 or AFC09 … AFC38 contactors. VEM4 set includes a mechanical interlock unit VM4 with 2 fixing clips (BB4) and a VE4 electrical interlock block with A2-A2 connection. Fixing the electrical interlock block on the front of the contactors connects the 2 built-in N.C. interlocking contacts to the two coils saving up to 50% less wiring compared to conventional electrical interlocking. VE4 block must be used with A2-A2 connection to respect the electrical connection diagram.

1SBN030111R1000 key specifications

Key specifications: 2P; IP20; to IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1.

Ordering information for 1SBN030111R1000

1SBN030111R1000 — frequently asked questions

How many poles does 1SBN030111R1000 have?

1SBN030111R1000 is a 2P device.

Where is the datasheet for 1SBN030111R1000?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SBN030111R1000 a genuine ABB product?

Yes. 1SBN030111R1000 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code1SBN030111R1000
Product NameFilter products by VEM4
BrandFilter products by ABB, ABB Group, ABB Limited
Product SeriesFilter products by Accessories for Block Contactors
GTIN / EAN3471523130616
RangeFilter products by VEM4 – Mechanical interlock for AF09 … AF38

Electrical ratings

Number of polesFilter products by 2P

Power & coil

Con Fre Air The CurFilter products by 16 A

Environment & protection

Degree of protection (IP)Filter products by IP20

Standards & certification

Conformity to standardsFilter products by IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Dimension drawingsDownload dimension drawings
ABB product pageView on the ABB site
Deep LinkPrintable product summary
360° viewOpen 360° view

More in the Accessories for Block Contactors range

8 items

Same series, same mounting and the same documentation set.

Similar items

5 items

More in AF Contactor Accessories

8 items

Alternatives on our other RMS storefronts

RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.

Quick answers

What is 1SBN030111R1000?

1SBN030111R1000 is the order code for VEM4. It belongs to our AF Contactor Accessories range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.

How many poles does 1SBN030111R1000 have?

VEM4 is a 2P-pole device.

What is the IP rating of 1SBN030111R1000?

ABB gives it a degree of protection of IP20.

Is it available?

It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.

How do I get a formal quotation?

Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.

Do I pay when I order?

No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
