ABBContactorsMotor Control and Drives
1SBL371024R8000 – UA63-30-00RA, 220-230V AC coil ABB UA..RA Capacitor
Order code
R6 877.79
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Buy 1SBL371024R8000 – UA63-30-00RA, 220-230V AC coil ABB UA..RA Capacitor Contactors from ABB. Genuine ABB component for automation, motor control and electrica UA63-30-00RA, 220-230V AC coil
Accessories & add-ons 8
- BER16-4KF, Connection sets1SBN081322R1000 Original price was: R403.50.R221.92Current price is: R221.92.Add
- AF750-30-11, 250-500V AC/DC coil1SFL637001R7111 Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.Add
- AF750-30-11, 100-250V AC/DC coil1SFL637001R7011 Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.Add
- AF750-30-11, 48-130V AC/DC coil1SFL637001R6911 Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.Add
- AF750-30-11, 24-60V DC coil1SFL637001R6811 Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.Add
- BEY16C-3 Connection sets1SBN081018R2000 Original price was: R331.50.R182.33Current price is: R182.33.Add
- BER16C-3 Connection sets1SBN081012R1000 Original price was: R253.37.R139.36Current price is: R139.36.Add
- BEA16-3 Connecting links1SBN081006T1000 Original price was: R129.73.R71.35Current price is: R71.35.Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
UA63 range – 50kvar 400V, 220-230V AC coil The UA63-30-00RA 220-230V 50Hz / 230-240V 60Hz is a 3-pole contactors for capacitor switching, can be used in installations in which the peak current far exceeds 100 times nominal rms current. The contactors are delivered complete with their damping resistors and must be used without additional inductances (see table below). The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized when the contactors are making. Their electrical durability is 250 000 operating cycles for Ue < 500 V and 100 000 operating cycles for 500 V ≤ Ue ≤ 690 V. The UA..RA contactors are fitted with a special front mounted block, which ensures the serial insertion of 3 damping resistors into the circuit to limit the current peak on energization of the capacitor bank. Their connection also ensures capacitor precharging in order to limit the second current peak occurring upon making of the main poles. The insertion of resistors allows to damp the highest current peak of the capacitor when switching on, whatever its level. The UA..RA series 3-pole contactors are of the block type design. - Main poles: 3 main poles - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available.
1SBL371024R8000 – UA63-30-00RA, 220-230V AC coil ABB UA..RA Capacitor Contactors is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution applications.
ABB products are widely used across commercial and industrial installations where reliability, safety, and long operational life are required.
Applications
- Industrial automation
- Motor control systems
- Power distribution infrastructure
- Commercial electrical installations
Browse Related Categories
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by 1SBL371024R8000 |
|---|---|
| Product Name | Filter products by UA63-30-00RA 220-230V 50Hz / 230-240V 60Hz |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product Series | Filter products by UA63RA |
| International GTIN | Filter products by 3471522304803 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated voltage (Ue) | Filter products by 690 V |
| Rated operational voltage | Filter products by 690 V |
| Operating Voltage | Filter products by 690 V |
| Rated Control Circuit Voltage | Filter products by 220 … 230, Filter products by 230 … 240 |
| Rated Frequency | Filter products by 50 / 60 |
| Max Break Capacity | Filter products by 1300.0 kA, Filter products by 630.0 kA |
| Pollution Degree | Filter products by 3.0 |
Power & coil
| Coil Consumption | Filter products by 18.0 VA, Filter products by 180.0 VA, Filter products by 210.0 VA |
|---|---|
| Low Coil Consumption | Filter products by No |
Environment & protection
| Degree of protection (IP) | Filter products by IP20, Filter products by IP10 |
|---|---|
| Ambient air temperature | Filter products by -40 … +55, Filter products by -60 … +80, Filter products by '-40 … 70 |
Documents
| Datasheet | Download datasheet |
|---|---|
| RoHS declaration | Download RoHS declaration |
| Declaration of conformity | Download declaration of conformity |
| Instructions for use | Download instructions |
| Dimension drawings | Download dimension drawings |
| ABB product page | View on the ABB site |
| Deep Link | Open deep link |
Accessories & add-ons
1SBN081322R1000BER16-4KF, Connection sets Original price was: R403.50.R221.92Current price is: R221.92.View product
1SFL637001R7111AF750-30-11, 250-500V AC/DC coil Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.View product- 1SFL637001R7011AF750-30-11, 100-250V AC/DC coil Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.View product
- 1SFL637001R6911AF750-30-11, 48-130V AC/DC coil Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.View product
- 1SFL637001R6811AF750-30-11, 24-60V DC coil Original price was: R56 669.42.R31 168.18Current price is: R31 168.18.View product
1SBN081018R2000BEY16C-3 Connection sets Original price was: R331.50.R182.33Current price is: R182.33.View product
1SBN081012R1000BER16C-3 Connection sets Original price was: R253.37.R139.36Current price is: R139.36.View product
1SBN081006T1000BEA16-3 Connecting links Original price was: R129.73.R71.35Current price is: R71.35.View product
Similar items

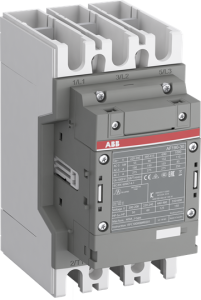

1SFL487002R1400AF190-30-00-14 Original price was: R12 461.14.R6 853.62Current price is: R6 853.62.View product
