| Rated voltage (Ue) | Filter products by 690 V |
|---|---|
| Number of poles | Filter products by 4P |
| Degree of protection (IP) | Filter products by IP20 |
| Product Series | Filter products by NF40E |
ABB4-Pole Contactor Relays with Push-in SpringContactorsMotor Control and Drives
1SBH137005R1340 – NF40EK-13 | ABB
Order code
List R836.23 Your price R459.93
Per unit · volume pricing available on request
excl. VAT R528.92 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
NF40EK-13 — ABB order code 1SBH137005R1340. 4P; rated voltage 690 V; control voltage 100 … 250 V; 50 / 60 Hz.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)
Select a variant in this series
Control voltage100 … 250 V2 options
- 24 … 60 / 20 … 60 V
- 100 … 250 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ABB distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview

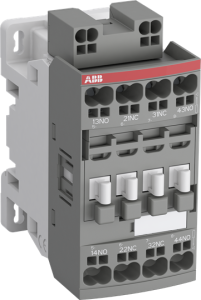

1SBH137005R1340 — NF40EK-13 from the ABB NF..K range – AC-15 4A 220V AC, 4NO, 100-250V AC/DC coil range. Listed under 4-Pole Contactor Relays with Push-in Spring on the ABB catalogue at RMS-ABB.Africa.
About 1SBH137005R1340
NF..K contactor relays are used for switching auxiliary and control circuits. NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. … Uc max. Only four coils cover control voltages between 24…500 V 50/60 Hz or 20…500 V.
1SBH137005R1340 key specifications
Key specifications: 4P; rated voltage 690 V; control voltage 100 … 250 V; 50 / 60 Hz; IP20; ambient −60 … +80 / −40 … +70 / −40 … +60 °C; to IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-13.
Ordering information for 1SBH137005R1340
- Order code:
1SBH137005R1340 - Manufacturer: ABB
- Range: NF..K range – AC-15 4A 220V AC, 4NO, 100-250V AC/DC coil
- GTIN / EAN: 3471523152434
- Supplied: each
- Datasheet: manufacturer datasheet for 1SBH137005R1340
1SBH137005R1340 — frequently asked questions
What coil or control voltage does 1SBH137005R1340 use?
1SBH137005R1340 is supplied with a 100 … 250 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
How many poles does 1SBH137005R1340 have?
1SBH137005R1340 is a 4P device.
Where is the datasheet for 1SBH137005R1340?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.
Is 1SBH137005R1340 a genuine ABB product?
Yes. 1SBH137005R1340 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
- Download datasheet (opens in a new tab)
- Open 360° view (opens in a new tab)
- View on the ABB site (opens in a new tab)
- Printable product summary (opens in a new tab)
- Download dimension drawings (opens in a new tab)
- Download RoHS declaration (opens in a new tab)
- Download declaration of conformity (opens in a new tab)
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | 1SBH137005R1340 |
|---|---|
| Product Name | Filter products by NF40EK-13 |
| Brand | Filter products by ABB, ABB Group, ABB Limited |
| Product Series | Filter products by NF40E |
| GTIN / EAN | 3471523152434 |
| Range | Filter products by NF..K range – AC-15 4A 220V AC, 4NO, 100-250V AC/DC coil |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|---|
| Rated voltage (Ue) | Filter products by 690 V |
| Control circuit voltage (Us) | Filter products by 100 … 250 V |
| Rated Frequency | Filter products by 50 / 60 Hz |
| Pollution Degree | Filter products by 3 |
Power & coil
| Low Coil Consumption | Filter products by No |
|---|---|
| Con Fre Air The Cur | Filter products by 16 A |
| Power Loss | Filter products by 0.1 W |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|---|
| Ambient air temperature | Filter products by −60 … +80 / −40 … +70 / −40 … +60 °C |
Standards & certification
| Conformity to standards | Filter products by IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-13 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| RoHS declaration | Download RoHS declaration |
| Declaration of conformity | Download declaration of conformity |
| Dimension drawings | Download dimension drawings |
| ABB product page | View on the ABB site |
| Deep Link | Printable product summary |
| 360° view | Open 360° view |
More in the NF40E range
1 itemsSame series, same mounting and the same documentation set.
More in the NF40E range
1 items
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is 1SBH137005R1340?
1SBH137005R1340 is the order code for NF40EK-13. It belongs to our 4-Pole Contactor Relays with Push-in Spring range. RMS-ABB.Africa supplies it as genuine ABB product, sourced through the manufacturer's distribution channel.
How many poles does 1SBH137005R1340 have?
NF40EK-13 is a 4P-pole device.
What voltage is 1SBH137005R1340 rated for?
ABB rates it for 690 V.
What is the IP rating of 1SBH137005R1340?
ABB gives it a degree of protection of IP20.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
