Save 45%
PS1-5-1-100
Key specifications
Rated voltage (Ue)Filter products by 250 / 690 V
Degree of protection (IP)Filter products by IP20
Product SeriesFilter products by PS1

ABBManual Motor Starters AccessoriesMotor Control and DrivesMotor Protection Circuit Breakers

1SAM201916R1115 – PS1-5-1-100 | ABB

Order code

List R477.76 Your price R262.77

Per unit · volume pricing available on request

excl. VAT R302.19 incl.

Listed in stock — availability is re-confirmed on every order

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

PS1-5-1-100 — ABB order code 1SAM201916R1115. Rated voltage 250 / 690 V; rated operational voltage 690 / 250 V; IP20; ambient −25 … +70 / −50 … +80 °C.

In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

Download datasheet (opens in a new tab)Open 360° view (opens in a new tab)View on the ABB site (opens in a new tab)

Ordering & delivery
  • Contact us for bulk pricing, lead times and ordering codes.
  • Minimum order: 1 unit.
  • Manufacturer's standard warranty applies.
  • Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
  • Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
  • Authorised ABB distributor
  • Genuine product with manufacturer warranty
  • Formal quotations with written lead times
SKU: 1SAM201916R1115 Categories: , , Tags: , ,

Overview

1SAM201916R1115 — PS1-5-1-100, a motor protection circuit-breaker, , busbar,connection rail , phase busbar from the ABB PS1-5-1-100 – 100A, for 5 x MS116/MS132/MO132 & 1 aux range. Listed under Manual Motor Starters Accessories on the ABB catalogue at RMS-ABB.Africa.

About 1SAM201916R1115

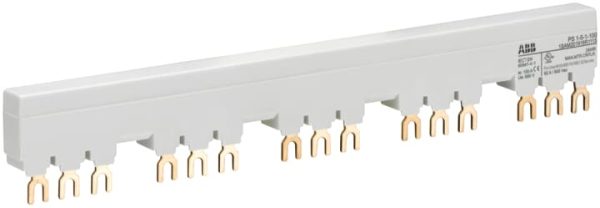

PS1-5-1-100 3-phase busbars ensure a quick and safe connection of 5 MS132 or MS116 manual motor starters with 1 lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 100 A.

1SAM201916R1115 key specifications

Key specifications: rated voltage 250 / 690 V; rated operational voltage 690 / 250 V; IP20; ambient −25 … +70 / −50 … +80 °C; to IEC/EN 60947-1|IEC/EN 60947-4-1|UL 60947-1|UL 60947-4-1.

Ordering information for 1SAM201916R1115

1SAM201916R1115 — frequently asked questions

Where is the datasheet for 1SAM201916R1115?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where ABB publishes them.

Is 1SAM201916R1115 a genuine ABB product?

Yes. 1SAM201916R1115 is supplied through the manufacturer’s authorised channel with the standard ABB warranty, and every order is confirmed against stock before payment.

Documents

Published by the manufacturer for this part. Each one opens in a new tab.

Technical specifications

Data supplied by the manufacturer. Confirm against the official datasheet before ordering.

Identification & ordering

Order code1SAM201916R1115
Product NameFilter products by PS1-5-1-100
BrandFilter products by ABB, ABB Group, ABB Limited
Product typeFilter products by Motor protection circuit-breaker, , Busbar,Connection rail , Phase busbar
Product SeriesFilter products by PS1
GTIN / EAN4013614400667
RangeFilter products by PS1-5-1-100 – 100A, for 5 x MS116/MS132/MO132 & 1 aux

Electrical ratings

Rated voltage (Ue)Filter products by 250 / 690 V
Rated operational voltageFilter products by 690 / 250 V
Pollution DegreeFilter products by 3

Environment & protection

Degree of protection (IP)Filter products by IP20
Ambient air temperatureFilter products by −25 … +70 / −50 … +80 °C

Standards & certification

Conformity to standardsFilter products by IEC/EN 60947-1, Filter products by IEC/EN 60947-4-1, Filter products by UL 60947-1, Filter products by UL 60947-4-1

Documents

DatasheetDownload datasheet
RoHS declarationDownload RoHS declaration
Declaration of conformityDownload declaration of conformity
Dimension drawingsDownload dimension drawings
ABB product pageView on the ABB site
Deep LinkPrintable product summary
360° viewOpen 360° view
